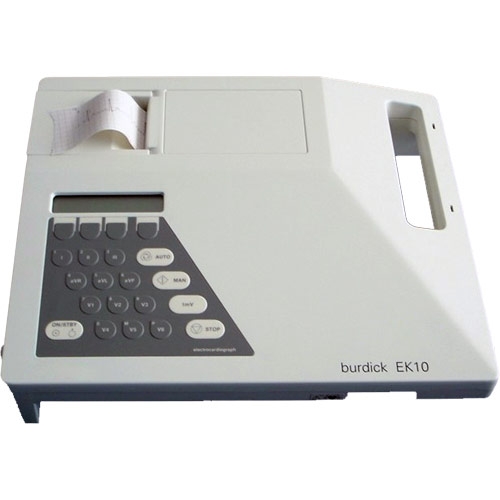

EK-10 Single Channel EKG/ECG Machine by Burdick

EKG Brand	Burdick
EKG Condition	New
EKG Configuration	Tabletop
EKG Print Size	Single Channel

EKG Brand

Burdick

EKG Condition

New

EKG Configuration

Tabletop

EKG Print Size

Single Channel

Features

Up to $30 Reimbursement per test with this machine

This machine pays for itself after 45 tests

Single Channel, Non-Interpretive

Ergonomically designed with a built in handle for portability

Perfect visiting practitioners

Each strip is labeled with calibration pulse, patient ID and acquisition parameters to aid your analysis

The thermal array printer provides reports in a single channel format

Features

Up to $30 Reimbursement per test with this EKG machine
This EKG machine pays for itself after 45 tests
Single Channel, Non-Interpretive EKG Machine
Ergonomically designed with a built-in handle for portability
Perfect visiting practitioners
Each strip is labeled with calibration pulse, patient ID, and acquisition parameters to aid your analysis
The thermal array printer provides reports in a single channel format

brochure

Burdick EK-10 Single Channel ECG Brochure

EKG machine essentials

One-button operation

Glassgow algorithm

Stores up to 30 ECGs

Single-channel, 12-lead format

commonly asked questions

What's the Warranty on the EK-10 Single Channel ECG/EKG?

The Burdick EK-10 Single Channel ECG/EKG Machine has a 3-year warranty.

What accessories do I need for the EK-10 Single Channel EKG?

Burdick EK-10 Single Channel ECG/EKG Machine Accessories:

EKG Electrodes

Universal Clip Adapter

EKG Paper

What are the specifications for the Burdick EK-10 Single Channel EKG?

Dimensions: 11″ x 13″ x 3.25″ (280 mm x 330 mm x 81 mm)

Weight: 9 lbs. (4.1 kg)

Display: 2 x 20 character LCD

Keyboard: Numeric entry: hardkey control

Input/Output: Serial: RS-232 (9-pin D); Signal options: 1 mV input = 1 V output +/- 10%

Power requirements: AC operation: 115/230 V AC +/- 10%, 50/60 Hz; Battery operation: 12.5 V NiCd rechargeable battery pack (optional)

Printout: Printout device: 48 mm thermal dot array; Paper dimensions: 50 mm wide, 45 mm grid, 45.7 m (150 ft.) per roll; Paper type: Thermal-sensitive; Chart speeds: 25, 50 mm/sec. +/- 2%; Printout formats: 1-channel automatic or manual

Acquisition: Lead selection: I, II, III, aVR, aVL, aVF, V1, V2, V3, V4, V5, V6; Modes: Automatic or manual; Frequency response: 0.05 Hz to 30 Hz, -3 dB (filtered); meets or exceeds ANSI/AAMI EC11-1982 standard; Input impedance: >50 Mohms; Electrode offset tolerance: +/- 300 mV; A/D conversion: 12 bits, 5 µV LSB

Environmental Specifications: Operating temperature: 50°F to 104°F (10°C to 40°C); Storage temperature: -29°F to 158°F (-34°C to 70°C); Relative humidity: 15% to 90% non-condensing

Conforms to standards: IEC 601-1 / CSA C22.2 no. 601-1, IEC 601-2-25 / CSA C22.2 no. 601-2-25, IEC 601-1-2 / CSA C22.2 no. 601-1-2, CSA C22.2 no. 125-M1984, ANSI/AAMI EC11-1982

Safety: Leakage current: Patient <10 µA, chassis <100 µA; Defibrillation protection: To 5000 V, 360 J

Warranty: Three years parts and labor
