Features

• The Mindray – Datascope DPM 5 has replaced this model.  Please see the DPM 5
• 12.1″ color TFT display with maximum 8 waveforms
• Anesthetic agent monitoring(Artema)
• Clinical Proved SpO2 Technology
• Microstream EtCO2(Oridion)
• Maximum 96-hour graphic and tabular trend of all parameters
• Large font display
• SpO2 pulse-tone modulation(Pitch Tone)
• 40-second full-disclosure waveform review
• Alarm light indicator
• Compact flash memory card option
• Suitable for adult, pediatric and neonatal patients
• 2 year warranty

Configuration Included:

Multi-Gas/O2/AutoID with Acessory kit, 2 Channel IBP board without accessory kit, ECG, RESP, Dual-TEMP, Mindray SpO2, NIBP, Li-ion Battery, Thermal Recorder

Standard Accessories:

• 6 Pin ECG Trunk Cable with 1kO Resistance
• 3 Lead AHA Leadwires of Clip
• 1 Adult NIBP Tubing with connectors (3m)
• 1 Adult Cuff with connector (CM1203, 25cm-35cm)
• 1 Mindray Adult Finger SpO2 Sensor (Reusable)
• 1 Mindray SpO2 Extension Cable (with 6 PIN Mindray connector, 40 degree)
• 1 Removable Battery (Lithium 12V)
• 1 Power Cord (US)
• Operation Manual

Brochure

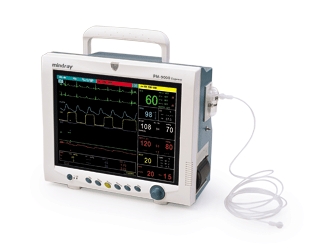

Mindray – Datascope PM-9000Express Patient Monitor Brochure
