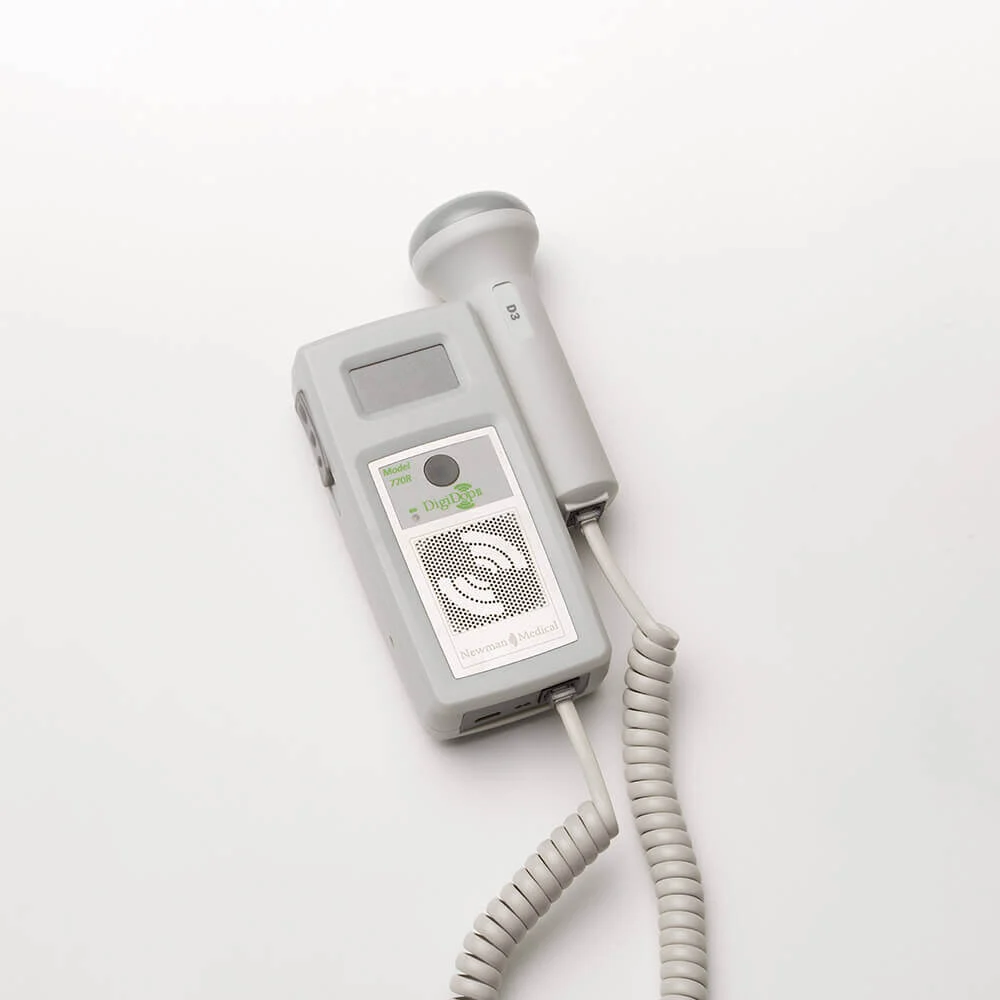

The DD-770R doppler provides a large, bright, back lit display of the heart rate. The display also indicates battery, volume, and signal strength status. The powerful digital processor in the DigiDop utilizes Digital Signal Clarity - DSC to eliminate background noise and amplify a strong clear signal. True auto-correlation calculates a fast, accurate heart rate.

Doppler Brand

Doppler Probe Frequency

, , ,

Doppler Type

,

Configuration

DigiDop II 770 with 2MHz probe, DigiDop II 770 with 2MHz waterproof probe, DigiDop II 770 with 3MHz probe, DigiDop II 770 with 3MHz waterproof probe, DigiDop II 770 with 5MHz vascular probe, DigiDop II 770 with 8MHz vascular probe, DigiDop II 770R with 2MHz probe, DigiDop II 770R with 2MHz waterproof probe, DigiDop II 770R with 3MHz probe, DigiDop II 770R with 3MHz waterproof probe, DigiDop II 770R with 5MHz vascular probe, DigiDop II 770R with 8MHz vascular probe

Features

DD-770 Doppler with heart rate display

The DD-770 doppler provides a large, sharp, bright display of the heart rate. The readout can easily be seen in a variety of conditions. The powerful digital processor in the DigiDop performs a true auto-correlation calculation for fast, accurate heart rate. The display also indicates battery, volume, and signal strength status.

Superior sound quality

Our Dopplers have the sensitivity and audio response to allow you to hear the blood flow sounds quickly and clearly. All DigiDop Dopplers have state of the art Digital Signal Clarity – DSC™. A sound processor in the main unit enhances the sounds you want to hear while reducing those you don’t. The DSC™ processing is optimally set for each different probe frequency.

The DigiDop speakers are small but powerful high fidelity speakers that have an extraordinarily smooth and rich response over the whole range of Doppler sounds.

Fetal and Vascular Probes

All DigiDop probes provide the sensitivity and reliability you need. All probes will work on all DigiDops for maximum versatility.  Our 2 and 3 MHz fetal probes utilize our exclusive eXtended Depth – XD™ technology that has increased sensitivity at closer depths without sacrificing it at deeper depths. These probes create more than six times as much signal at some depths that other probes. All our fetal probes have a smooth contour design that is comfortable to hold, comfortable for the patient, and easy to clean.

  • 2 MHz probes provide excellent deep penetration for late term pregnancy or larger patients.
  • 3 MHz probes are especially sensitive to early fetal hearts but can also be used throughout the pregnancy.
  • Both 2 and 3 MHz probes are available in waterproof versions for water-assisted labor and delivery. These waterproof probes can be removed from the DigiDop and replaced with a standard probe.
  • 5 MHz probes provide excellent deep penetration for deeper arteries and veins
  • 8 MHz probes are especially sensitive for vessels near the surface like the radial, posterior tibial, and dorsalis pedis arteries.
  • PPG probe. The DigiDop family of vascular probes also includes a unique PPG probe that generates an audible sound with each pulse. It is an excellent diagnostic tool for obtaining pulses in the digits to assist in toe-brachial index or penile index measurements.



Built to last

With our industry-leading five-year warranty we have made sure that the DigiDop will stand up to hard use day after day. The combination of our sturdy design and warranty can save you significant service costs.

The body is made of a mix of tough plastics with a unique stainless steel grill over the speaker. Our latest DigiDop’s smooth, clean lines are also more comfortable in the hand. The grill has micro-screen openings to protect the speaker; the speaker itself has an internal sound transparent fabric cover to keep out dirt and dust.

Our unique magnetic probe holder won’t crack or break and gently cradles the probe when not being used. The strong magnets we use hold the probe without being sensitive to how it’s rotated. The open design avoids gathering dirt, gel and germs.

Specifications

Level of Protection against electrical shock

Type B Applied Part

Class II Equipment

Designed to meet the following standards: IEC60101-1; IEC60601-2; IEC60601-2-37

Dimensions-imperial (h x w x d): 4.75” x 2.25” x 1.25”

Dimensions metric (h x l x w): 120 x 57 x 32 mm

Weight (with batteries): 260 grams (9.2 ounces)

Operating Temperature: 10° to 40°C (50° to 104°F)

Operating Humidity: 30% to 75%

Transport/Storage Temperature: -20° to 50°C (-4° to 122°F)

Transport/Storage Humidity: 5% to 90%, non-condensing

Battery Voltage, type: 3 x 1.5 volts, AAA Alkaline; 3 x 1.2 volts, AAA NiMH

Battery Life: NiMH: 250, 1-minute exams; Alkaline: 300, 1-minute exams

Audio Bandwidth and power: 100Hz – 3000Hz, 1.0W

Heart Rate Calculation accuracy: +/- 3 BPM

Audio Cable Interface: 3.5mm stereo plug
