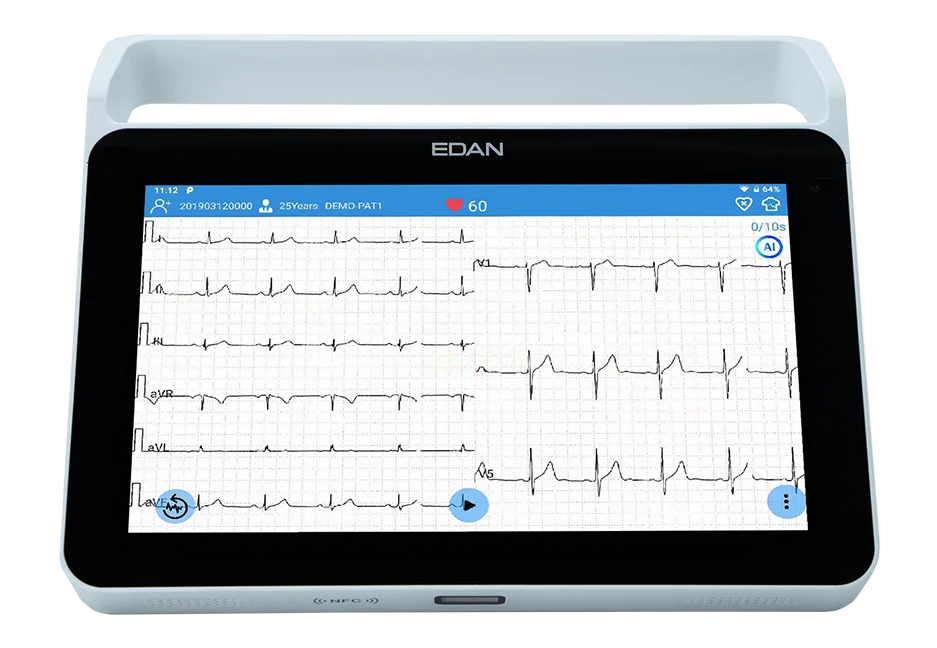

Edan iSE Series ECG Machine

Specifications

PHYSICAL SPECIFICATION

• No handle or thermal printer: 270mm(L)×170mm(W)×28mm(H)
• With handle: 270mm(L)× 230mm(W)× 52mm(H)
• With thermal printer: 274mm(L)× 274mm(W)× 90mm(H)

Weight:

• 1.2 kg (excluding thermal printer, handle, and printer)
• 1.4 kg (with handle, excluding thermal printer and printer)
• 2.3 kg (with thermal printer, excluding handle and printer paper)

DISPLAY

• Screen Size: 10.1”
• Resolution: 1920 x 1200 LCD full touch screen

POWER SUPPLY

• Mains Supply:
  Operating Voltage = 100V-240V
  Operating Frequency = 50Hz/60Hz
  Input Current = 1.1A
• Internal Li-ion Battery Pack:
  Rated voltage = 15.2V
  Rated capacity = 3,550 mAh
  Operating time: > 8 hours
  Charge time: ≤ 5 hours

HR

• Range: 30 BPM~300 BPM
• Accuracy: ±1 BPM

DE12/DE18 PERFORMANCE

• Leads:
  DE12: 12 standard leads
  DE18: 18 standard leads
• A/D Converter: 24 bits
• Sampling Frequency: 64,000 /sec/channel
• Acquisition Mode:
  DE12: Simultaneously 12 leads
  DE18: Simultaneously 18 leads
• Resolution: 0.1192μV/LSB
• Resolution: ≥5s
• Frequency Response: 0.01Hz ~ 350Hz (3dB)
• Input Impedance: ≥ 100M Ω (10Hz)
• Input Voltage Range: ≤±5 mVpp
• CMRR:
  ≥140dB (AC on)
  ≥123dB (AC off)
• Gain: 1.25, 2.5, 5, 10, 20, 10/5 mm/mV, AGC (±5%)
• Input Circuit Current: ≤0.01 μ A
• Calibration Voltage: 1mV±2%
• QTc Formulas: Bazzet, Fridericia , Framingham, Hodges, and QRS

PACEMAKER

• Amplitude:
  DE12: ±500 μV to ±700 mV
  DE18: ±750 μV to ±700 mV
• Width:
  DE12: 30 μs to 2.0 ms
  DE18: 50 μs to 2.0 ms

FILTER

• AC Filter: Off/50Hz/60Hz
• DFT Filter: 0.01Hz/0.05Hz/0.32Hz/0.67Hz
• EMG Filter: Off/25Hz/35Hz/45Hz
• LOWPASS Filter: 350Hz/300Hz/270Hz/150Hz/100Hz/75Hz

DATA TRANSMISSION

• Report Format: SCP, FDA-XML, DICOM (Encapsulated PDF),
• DICOM (ECG Waveform), PDF,JPG, BMP, PNG, and TIFF
• Data Transmission: WiFi, Ethernet, 4G network
• Data Storage: 100,000 pieces of 10s DAT examination with files
• Data Management System:
  SE-1515 Data Management System
  bi-directional communication

WIFI

• Transmitting Frequency: 2.4GHz & 5GHz
• Frequency Band:
  2412 MHz-2472 MHz (2.4GHz)
  5150 MHz-5850 MHz (5GHz)
• Modulation Type
  DBPSK/DQPSK/CCKBPSK/QPSK/16QAM/
  64QAM,GFSK,π/4 DQPSK,8 DPSK
• Transmitting Power:
  ≤17 dBm (2.4GHz)
  ≤17 dBm (5GHz)

4G (Optional)

• Bands:
  FDD LTE: Band 1, Band 3, Band 8, all bands with diversity
  TDD LTE: Band 34, Band 38, Band 40, all bands with diversity

NFC (Optional)

• Frequency Band: 13.56 MHz
