$2,395.21

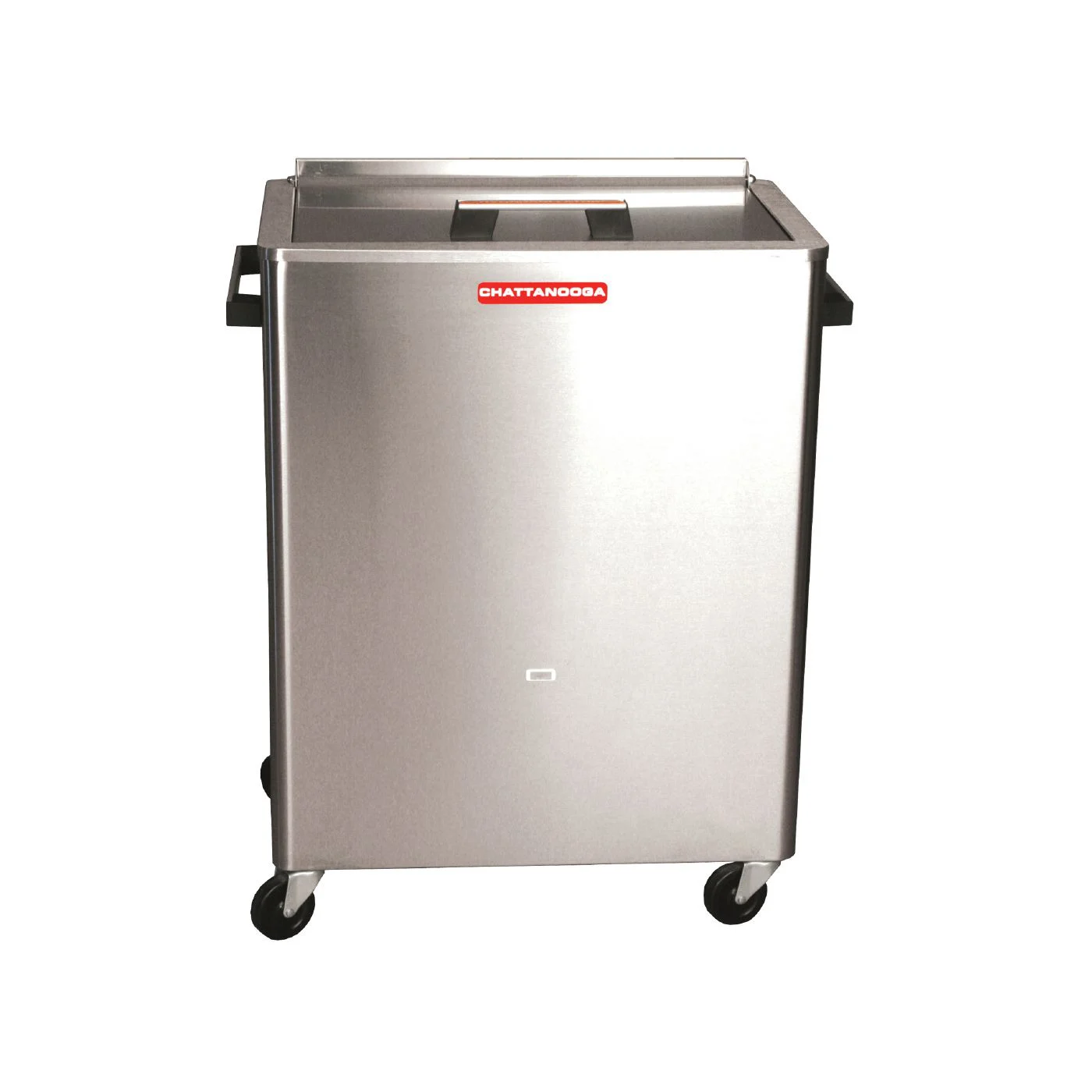

The Hydrocollator M-2 Mobile Heating Unit is a wheeled, temperature-controlled storage unit. It is one of multiple Hydrocollator heating unit models that Chattanooga offers. The unit is made of an outer layer of steel that boasts durability and is easy to clean. Inside, the heating unit is lined with fiberglass insulation for a constant supply of heat-consistent HotPacs. Users can control the temperature of the units via an independent thermostat.
This mobile unit is wheeled for maneuverability and portability, and is used most often in rehabilitation treatments, chiropractic offices, and physical therapy.
| Physical Therapy Brand | |
|---|---|
| Physical Therapy Equipment Type |
| Mains Power | -110~120 V 50/60 Hz |
| Power Consumption | 1000W |
| Product Weight | 48 lb (22 kg) |
| Shipping Weight | 93 lb (42 kg) |
| Dimensions | 27″L x 16″W x 33″H (69 cm x 41 cm x 33 cm) |
| Electrical Safety Class | Class 1, Type B |
| Safety Tests | Conforms to UL 60601-1, certified to Can/CSA C222 No. 601.1 |
| Tank Capacity (approx. with HotPacs) | 14 gal (52 L) |
| Temperature Range | 160° – 165°F (71° – 74°C) |
| Thermal Cut-Out Temperature | 180° – 185°F (82° – 85°C) |
| Temperature Accuracy | +/- 10% |
| Heat Up Time to 160°F (71°C) | 8 Hrs |
| Cool Down Time from 160°F (71°C) | 3 Hrs |
| Fiberglass Insulation | Yes |
| M-2 | M-4 | SS-2 | E-2 | E-1/E-1 MHT | |
| Tank Capacity | 14 gal | 27 gal | 10 gal | 8 gal | 3 gal |
| Temperature Range | 160° – 165°F | 160° – 165°F | 160° – 165°F | 160° – 165°F | 160° – 165°F |
| Thermal Cut-Out Temp. | 180° – 185°F | 180° – 185°F | 180° – 185°F | 180° – 185°F | 180° – 185°F |
| Temperature Accuracy | +/-10% | +/-10% | +/-10% | +/-10% | +/-10% |
| Heat up Time to 160° F | 6 Hours | 8 Hours | 4 Hours | 4 Hours | 2 Hours |
| Cool Down Time from 160°F | 3 Hours | 4 Hours | 4 Hours | 2 Hours | 1 Hour |
| Fiberglass Insulation | Yes | Yes | Yes | No | No |
High-Quality Stainless Steel
Thermostatically Controlled Temperature
Swivel-Type Rubber Casters
Easy Maintenance
