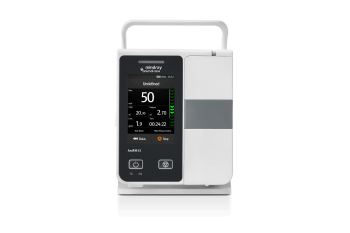

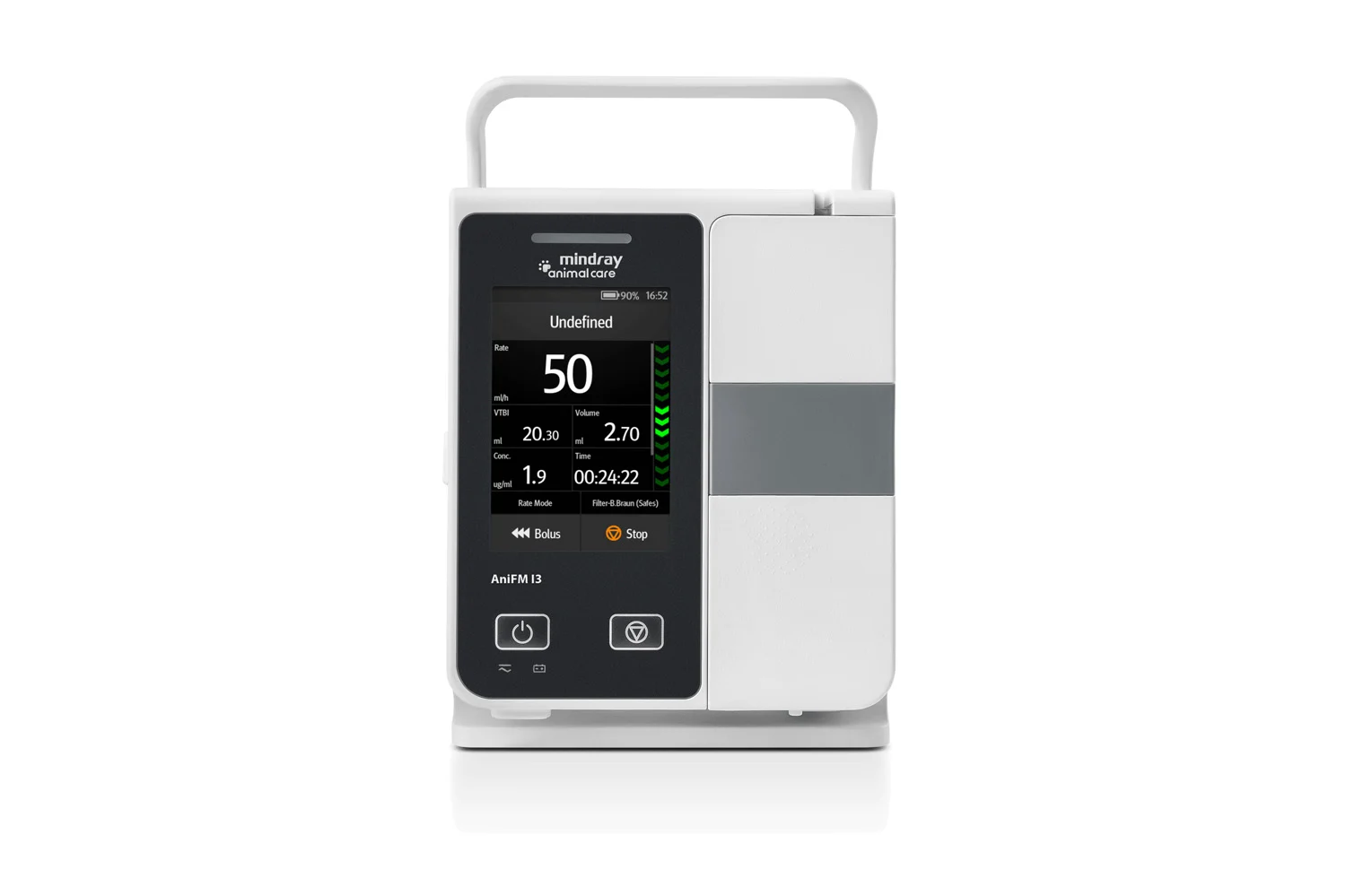

Mindray AniFM I3 Infusion Pump
$1,198.00
Questions? Speak with a Product Specialist!
The AniFM Series revolutionise the functionality and versatility of infusion/syringe pumps with smooth delivery, accuracy, and efficient infusion for animals.
Cleverly designed Suspension System
A floating pump drive system ensures consistent infusion accuracy over different consumable tubing and variations in their specifications. An intelligent fatigue compensation technology means with infusion line fatigue over long-term use, the AniFM will still infuse accurately.
The AniFM I3 has been certified for blood transfusion. Lab tests have shown that when AniFM I3 is used for blood transfusion, the deviation of red blood cell damage is ≤ 3%, which can effectively reduce the occurrence of incidents such as hyperkalemia, acute kidney injury, and thrombosis caused by blood cell destruction.
Intelligent Touch Screen
The intuitive 3.5 inch touchscreen clearly shows key parameters at a glance:
- VTBI/Volume
- Rate
- Speed/Dose
- Time elapsed
- Pressure of tubing
Parameters shown on screen can be personalised
The screen can be seen clearly from 3 metres away. Simply swipe up or down for access to more information if required.
Change the flow rate with a few simple taps, without stopping the machine.
The robust touch screen still offers smooth control even with up to 5 layers of sterile gloves.
Dynamic Alarm
The Dynamic Pressure Monitoring (DPS) features an innovative speedometer style indicator of pressure in the tubing, allowing for early warning of tubing occlusion.
The alarm levels can be completely customised to your requirements: 50-112mmHg in 1mmHG increments.
Once any temporary blockages have been identified and solved, the machine will automatically restart.
The visual alarm with graphics and text, gives a clear indication of the problem (e.g. Air in line) allowing for efficient identification and resolution of any problems.
Innovative Design
The rotating universal mounting allows simple attachment to kennels and vertical or horizontal poles. The raised design gives a flat surface for the AniFM I3 to be placed on operating beds or desktops.
The power socket is on the side of the device, rather than the back, which keeps the power cord well away from the cage front.
Multi Device Interconnection
The built-in Wi-Fi allows for connection to your Central Monitoring System (CMS).
Additionally, it enables centralised management of the animals’ infusion status from different wards including infectious disease/isolation wards, infusion rooms, in-patient departments, etc.
| Infusion/Syringe Pump Brand | Mindray |
|---|---|
| Infusion/Syringe Pump Type | Infusion Pump |
Specifications
- Weight: 1.3 kg
- Screen: 3.5″ touchscreen, TFT colour LCD
- Accuracy Rate: ≤ ±4.5 %
- Flow Rate: 0.10 ml/h – 2000 ml/h
- Increments: 0.01 ml/h (0.10 ml/h – 99.99 ml/h), 0.1 ml/h (100 ml/h – 999.9 ml/h), 1 ml/h (1000 ml/h – 2000 ml/h)
- Preset Volume (VTBI): 0.10 – 9999.99 ml (increment: 0.01 ml)
- Preset Time: 00:00:01 – 99:59:59
- KVO: 0.1 – 5.0 ml/h (increment: 0.01 ml/h)
- Purge Rate: 0.1 – 2000 ml/h
- Bolus Rate: 0.1 – 2000 ml/h (automatic or manual)
- Modes: Rate Mode, Dose Mode, Time Mode, Dose Time Mode, Sequential Mode, Intermittent Mode, Loading Dose Mode, Ramp Mode, Micro-Infusion Mode, Drip Mode, Rhythm Dose Application supported IV Drug Infusion, Enternal Nutrition Feeding, Blood Transfusions
- Air Bubble Detection
- History Log (up to 5000 events)
- Drug List (up to 5000 drugs, 30 categories, and supports colour-coded drug names)
- Audio and Visual Alarms
- Battery: 5.5 hr Operating Time, 5 hr Charge Time
