RCS-100 is a multi-functional, portable and versatile medical camera system that can be used with a choice of lenses and adapters to assess a patient's eyes, ears, nose, throat, skin and more.

RCS-100 advantages

RCS-100 has a touch screen which makes it quick and easy for the user to capture images and videos. The camera provides high-resolution, scalable images with 2x to 6x magnification of the otoscope and 2x to 8x magnification of the dermatoscope as well as digital zoom function. Single-handed operation adjusts the focus and light intensity using the ergonomic rotary wheel, whilst also minimising the risk of cross-contamination.

It provides the additional benefit of capturing and sharing the digital photograph or video of the ear canal and tympanic membrane, epidermis and dermis of skin, respectively. Across your practice and across the world, remotely or asynchronously.

Versatility for your speciality: A choice of lenses and adapters suitable for use in ENT (ears, nose and throat), Dermatology, Endoscopy and Gastroenterology

RCS-100 can substitute or replace the traditional otoscope and dermatoscopy devices, providing the additional benefit of capturing and sharing the digital photograph or video of the ear canal and tympanic membrane, epidermis and dermis of skin, respectively.

Providing evidence of diagnosis and improving effectiveness of treatments

Healthcare and insurance providers, in particular, are becoming increasingly focused on evidence; evidence of a diagnosis and to approve treatments. RCS-100 can support this demand by providing images and/or videos of a multitude of diagnoses, monitoring diagnoses and tracking the effectiveness of treatments.

Diagnostic Set Brand

Configuration

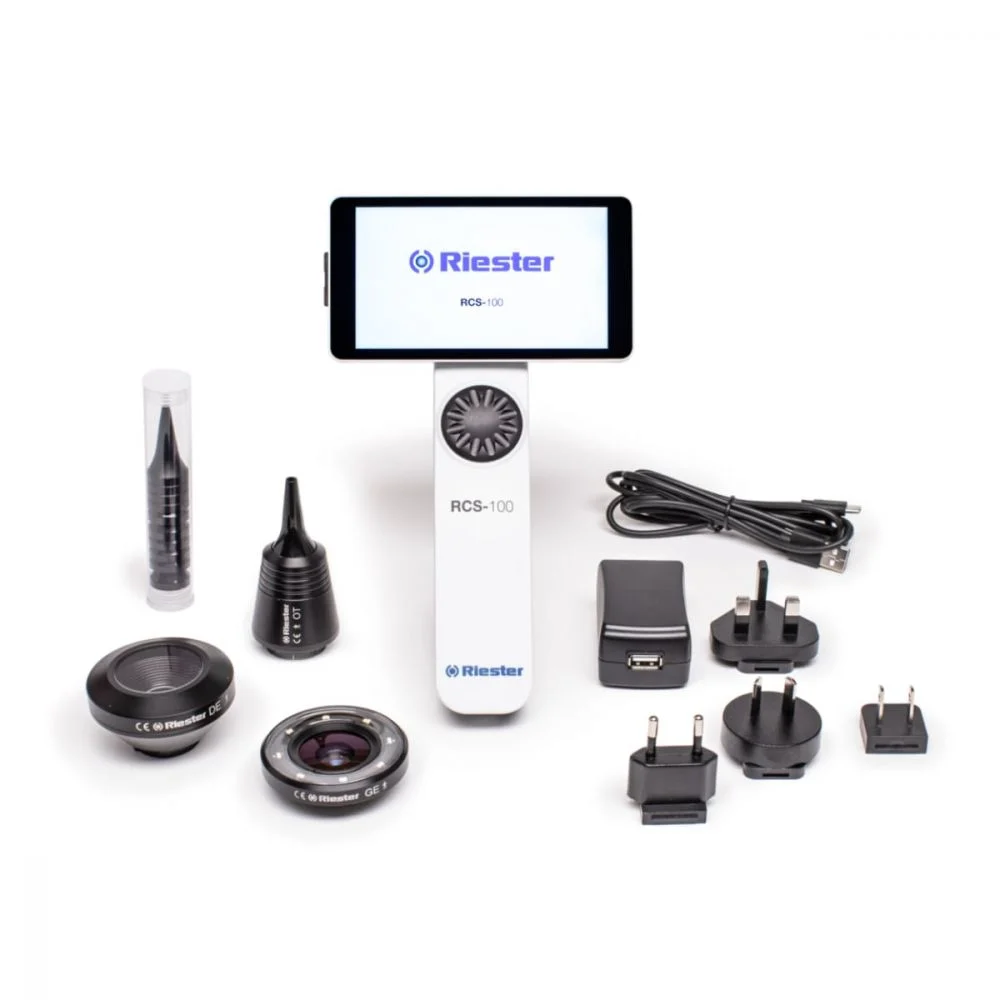

RCS-100 Camera Set (RCS-100 camera, general imaging lens, dermatoscope lens, and otoscope lens), RCS-100 Camera Unit

Features

  • 5“ full HD colour TFT-LCD display screen 1,280 x 720 pixels provides high resolution, scalable images with 2x – 8x magnification and digital zoom capabilities.
  • Touch screen makes it quick and easy for the user to capture images and videos.
  • One-handed operation with the ergonomic rotary wheel minimises the risk of cross-contamination as well as the capability to adjust focus and light intensity.
  • Live picture display on a second screen, using UVC function, allows the user to show another HCP or the patient what they can see and explain what this means in real time.
  • Share images via the micro-USB 2.0 cable, or optional Wi-Fi connection.
  • Languages: English, German, French, Spanish, Italian, Russian, Chinese and Arabic.

Specifications

RCS-100

LCD screen 5“ full HD colour TFT-LCD display 1.280 x 720 pixel including scratch proof cover
Focus Automatic/manual
Image/Video format Picture: JPEG / Video: MP4
Battery 3.6 V 2600 mAH 1S1P 18650-li-battery
Adaptor Input: 100 ~ 240 V50 ~ 60 Hz, 0.3 A
Output: DC 5 V/2 A
CMOS sensor 8 MP (megapixels)
USB OTG type C USB, UVC
RAM 2 GB LPDDR3
ROM 16 GB
Optional Extended memory 16 GB Wifi SD Card
Start time < 30 sec.
Wake up time < 5 sec.
Stand by time approx. 7 days
Ambient temperature + 10° C to + 40° C
Operating time Video 3.5 hours
Charging time 3 hours
Relative humidity 15 % to 95 % rel. non condensing
Storage 0° C to + 45° C
Cleaning control unit and charging adaptor Soft cloth with alcohol (70 % ethyl alcohol)
Cleaning optical lenses Cleaning cloth or a lens cleaning tissue (e.g. THORLABS)
Handset weight 292 g
Handset dimensions mm (in) 225 x 135 x 45 (8.86 x 5.31 x 1.77)
