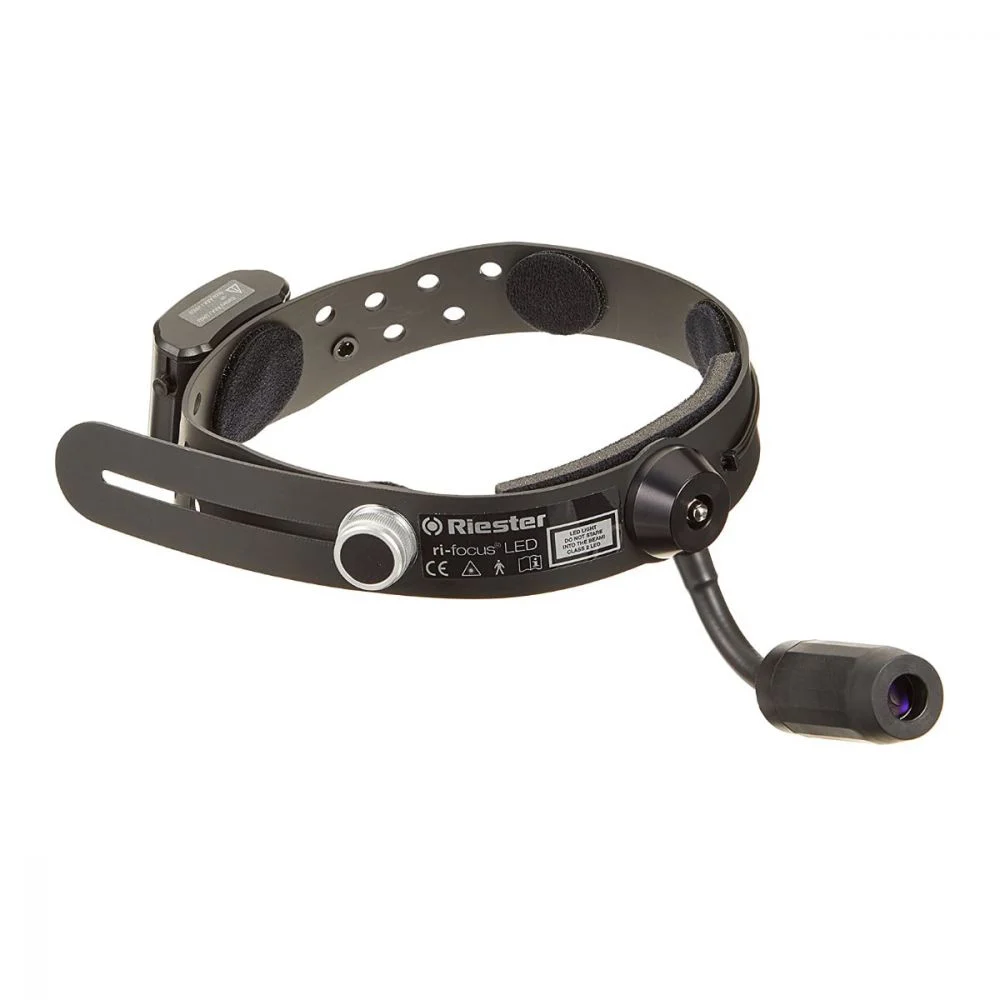

Riester Ri-focus LED Examination Headlight


mydiscount Get a Discount

Questions? Speak with a Product Specialist!

mychat Chat with Us!
Live Chat
myphone Call Us!
myemail Email Us!
Get in Touch

ri-focus® LED examination headlight is wireless high-performance headlamps, developed and manufactured in Germany. The LED headlamps provides optimal illumination, guaranteed optimal viewing conditions, at the same time low heat development and significantly less energy loss as well.

The headband is infinitely adjustable, offering high level of wear-comfort for practitioners without fatiguing operation even after long periods of use. The headband with integrated battery compartment can be ordered either for lithium CR 123A batteries or NiMH batteries with plug-in charger 230V/120V.

Lighting for diagnostic examinations and surgical interventions

The ri-focus® LED supports the doctor in carrying out diagnostic examinations and surgical interventions. The instruments serve the trained doctor or specialist as an aid in the detection, diagnosis, monitoring, treatment or relief of illnesses, injuries or disabilities. The product is usually used in a hospital or in a doctor's office, etc. The lifespan of the LED is set at 50,000 hours.

Diagnostic Set Brand


Ri-focus LED 6 V + lithium batteries, Ri-focus LED 6 V + rechargeable NiMH batteries and plug charger 120 V


  • Headband version, with built-in battery compartment and integral charge jack, can be optionally fitted with 2 lithium batteries size CR 123 A, 4 batteries size AAA (alkaline) or 4 rechargeable batteries size AAA (NiMH).
  • Headband cleaning made easy by inner, removable and washable padding.
  • Particularly comfortable with balanced, infinitely adjustable headband.
  • Use without any hindering cables.
  • On/off switch on battery compartment.
  • Charge jack for plug-in charger integrated in battery compartment.
  • Focusable LED lamp at a distance of 400 mm / in approx. Ø 40 mm / – Ø 200 mm, infinitely adjustable.
  • White LED, 1 Watt, 5.700 Kelvin, 6 V.
  • 10.000 Lux at 400mm distance and 23.000 Lux at 200mm distance.
  • Battery operation: approx. 4 hrs. with lithium batteries, approx. 90 min. with alkaline batteries Type AAA.
  • Rechargeable battery operation: approx. 90 min. with fully charged battery.
  • The on and off switch is located on the battery compartment


Dimension Max. Headband diameter approx. 200 mm
Min. Headband diameter approx. 160 mm
Lamp head diameter 29 mm
Length of lamp head 62.50 mm
Length of lamp arm with lamp head approx. 135 mm
Weight without batteries 210 g
with CR 123 A lithium batteries 242 g
with rechargeable AAA batteries 259 g
The lamp for ri-focus® 5700 Kelvin CRI 93 4.6 W
Light field Distance 400 mm / 200 mm
Lux max. 10.000 / 23.000
Circle of light max. Ø 200 mm / 120 mm
Circle of light min. Ø 40 mm / 30 mm
Plug-in charging device 5.8V 0.25A 50/60 Hz
Ambient temperature 0° to +40 °C
Relative Humidity 30% to 70% non-condensing
Storage/ Transport Ambient temperature -5 ° to +50 °C
Storage/ Transport relative Humidity 10% to 85% non-condensing
