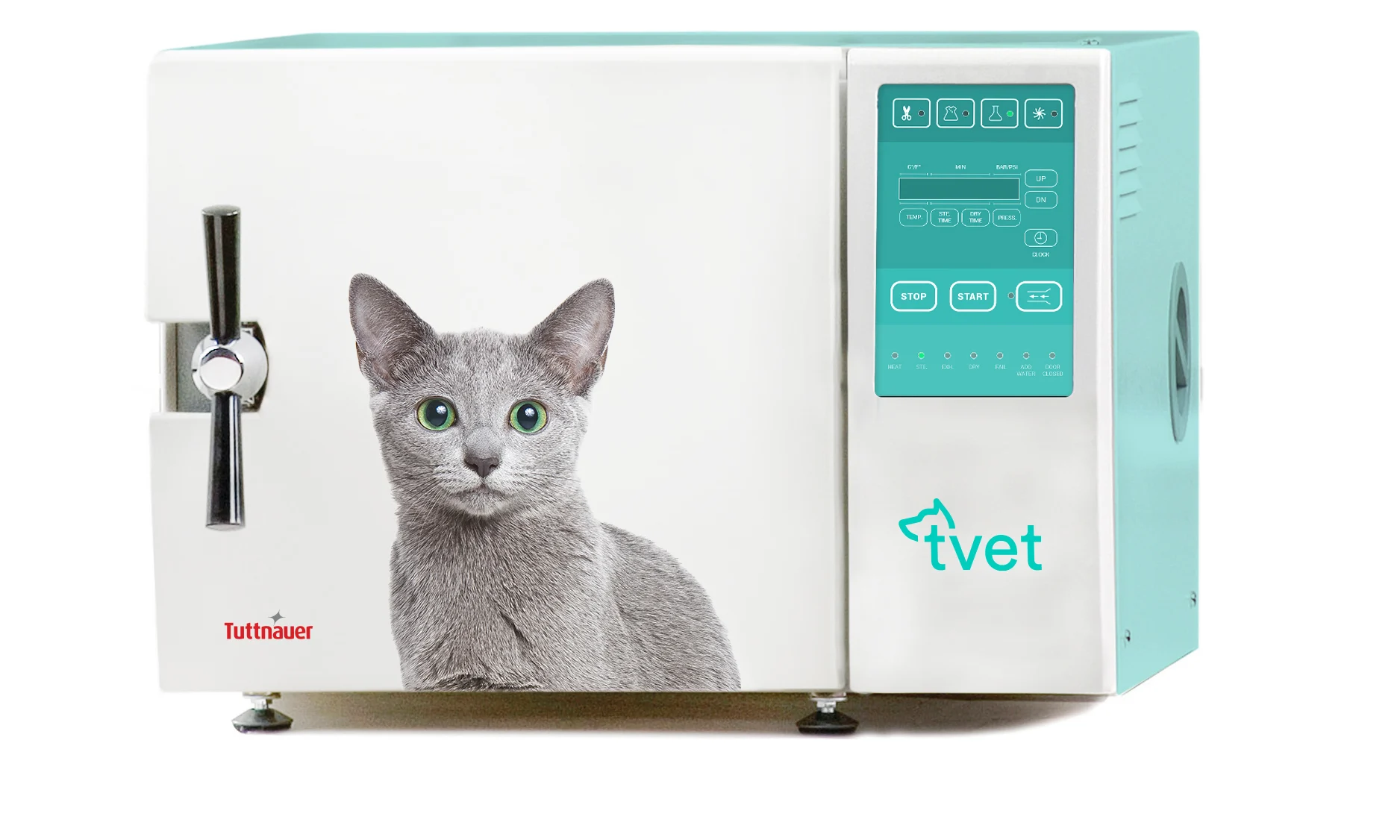

Tuttnauer TVET 10E Autoclave

SKU: TVET 10E Categories: ,

Questions? Speak with a Product Specialist!

Chat with Us!
Email Us!
Get in Touch

Description

The Tuttnauer TVET 10E Autoclave is a compact, fully automatic steam sterilizer that contains pre-programmed cycles for unwrapped or wrapped instruments, instrument packs, glassware, and an additional drying cycle. The autoclave is also self-monitoring, and will alert the user if the water reservoir is low, or if the cycle is interrupted.

Additionally, the TVET 10E has a high efficiency air pump through a HEPA filter that ensures a faster drying process, but prevents the steam from contacting the control panel to maintain a clean environment. Users can easily drain the water collection through the drain valve on the front of the device. Furthermore, the 10E’s brighter and easier to read panel delivers full penetration of steam and post-vacuum drying. The Tuttnauer TVET 10E Autoclave also has dual safety locks, backup power outage recovery, and maintains a closed door active drying system for sterility.

Additional information

Autoclave Brands

Autoclave Mode

Features

  • Closed door active drying system to maintain sterility and ensure efficient drying of packs and pouches.
  • High efficiency air pump circulates hot air after the sterilization cycle for fast drying.
  • Hepa filter 0.2hm air filter (replaceable)
  • Pre-programmed cycles for: unwrapped instruments; wrapped/packs; glassware and additional drying cycle.
  • All program parameters can be customized and stored.
  • Automatic shut off at the end of both the sterilization and dry cycles.
  • Audible and visual cycle interruption alert.
  • Double safety locking device prevents door from opening while chamber is pressurized.
  • Low water sensor prevents activation of sterilization cycle when there is insufficient water in the chamber or reservoir.
  • Constant monitoring of temperature and pressure for sterilization.
  • Power outage recovery system.
  • Door design prevents steam from coming in contact with control panel.
  • Drain valve is located on front, allowing for quick and easy draining of water reservoir.
  • Comprehensive 2 year parts and labor and 10 year chamber warranty

Specifications

  • Dimensions (D x W x H)
    21.5” x 20.1” x 14.4”
    545mm x 510mm x 365mm
  • Chamber Dimensions
    10” x 19”
    254mm x 475mm
  • Chamber Volume
    23 Liter
    6 Gallon
  • Tray Capacity
    4 Trays
  • Tray Dimensions
    16.3” x 6.7″ x 0.8”
    442mm x 170mm x 20mm
  • Standard Cassette Capacity
    3 Full & 3 Half
  • Voltage & Frequency
    120V
    50-60Hz
  • Power & Current
    1400W
    12A
  • Shipping Weight
    85 Lbs
    39 kg

Features

  • Closed door active drying system to maintain sterility and ensure efficient drying of packs and pouches.
  • High efficiency air pump circulates hot air after the sterilization cycle for fast drying.
  • Hepa filter 0.2hm air filter (replaceable)
  • Pre-programmed cycles for: unwrapped instruments; wrapped/packs; glassware and additional drying cycle.
  • All program parameters can be customized and stored.
  • Automatic shut off at the end of both the sterilization and dry cycles.
  • Audible and visual cycle interruption alert.
  • Double safety locking device prevents door from opening while chamber is pressurized.
  • Low water sensor prevents activation of sterilization cycle when there is insufficient water in the chamber or reservoir.
  • Constant monitoring of temperature and pressure for sterilization.
  • Power outage recovery system.
  • Door design prevents steam from coming in contact with control panel.
  • Drain valve is located on front, allowing for quick and easy draining of water reservoir.
  • Comprehensive 2 year parts and labor and 10 year chamber warranty

Autoclave Essentials

  • Drain Valve
  • Power Outage Recovery System
  • Audible and Visual Cycle Interruption Alert
  • Automatic Shut Off
