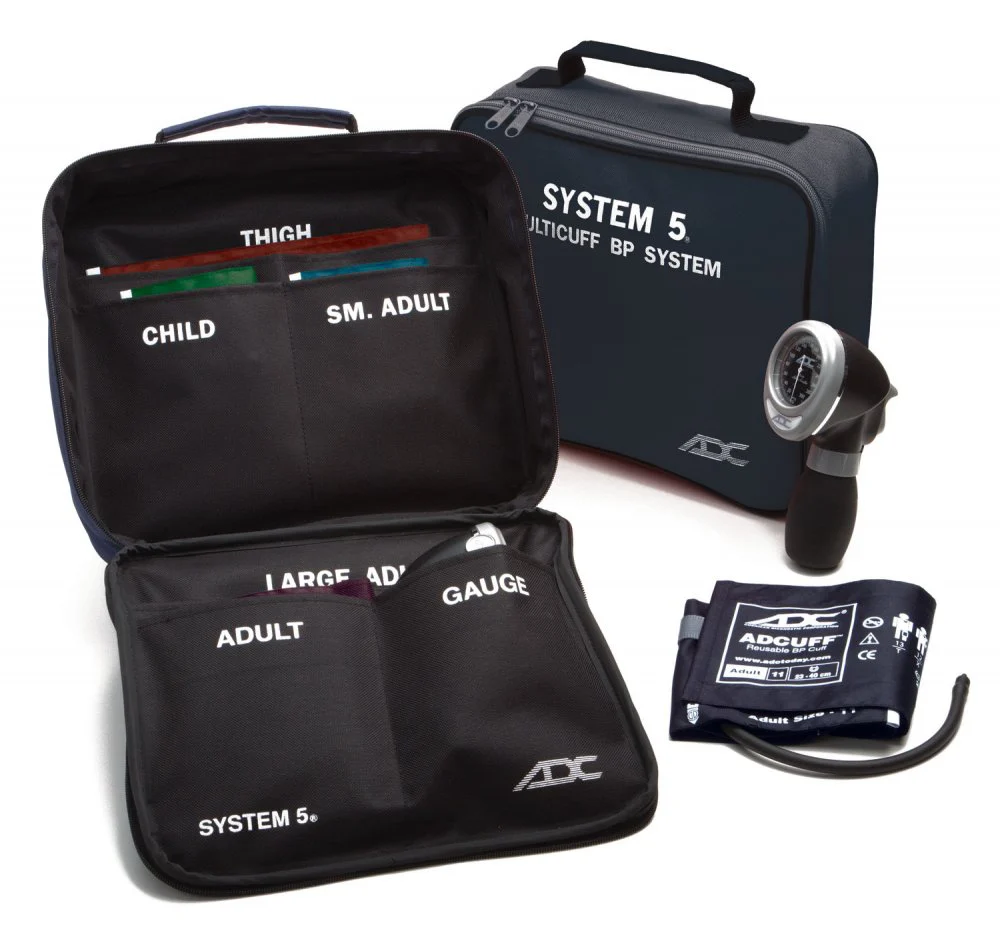

ADC System 5 Portable 5 Cuff Sphyg

ADC System 5 Portable 5 Cuff Sphyg
SKU: 740 Category:
Price range: $220.22 through $227.02

Questions? Speak with a Product Specialist!

Chat with Us!
Call Us!
888.354.2968
Email Us!
Get in Touch

Description

ADC’s System 5 Portable 5-Cuff Sphyg is the most compact, ergonomically designed, and affordably priced portable blood pressure system on the market. The traditional Adcuff model features two-piece cuffs and bladders:

  • Durable 210 denier nylon construction
  • Integral flap that secures bladder and prevents bulging
  • ADC’s proprietary Size Guide marking system prevents mis-cuffing
  • Longer limb ranges for improved patient coverage
  • Gauge hang tab (on most sizes), bladder flap, and “property of” tag
  • Hook-and-loop adhesive rated to a minimum of 30,000 open/close cycles
  • Three-year warranty on cuffs

Made without phthalates or natural rubber latex. Assembled, inspected, and packaged in the U.S.A from foreign components. Meets or exceeds ANSI/AAMI/ISO 81060-1.

Additional information

Aneroids BP Brand

Configuration

System 5 Multicuff Kit Multicuff, Standard, LF, System 5 Multicuff Kit Multicuff, 1 pc Cuffs, System 5 Multicuff Kit Multicuff, Navy, LF, System 5 Multicuff Kit Mutlicuff, Orange, LF

Features

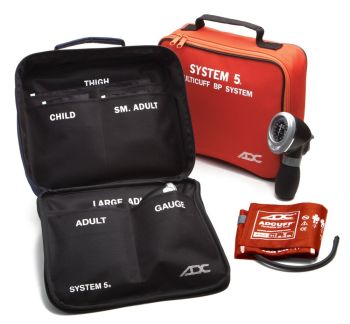

  • A multi-pocketed, heavy-duty 600 denier nylon attaché style case that keeps each component securely in place, yet instantly accessible
  • Case measures a compact 10” x 9” x 4” when closed, and weighs just 2.5 pounds; compact enough to fit in most emergency bags or trauma boxes
  • Reinforced handle allows for wall mounting in the open position
  • Dual-zipper closure for rapid access and protection against the elements
  • Includes five cuffs: child, small adult, adult, large adult, and thigh
  • Revolutionary palm-style manometer with integral bulb
  • Ambidextrous, infinite-control, trigger-style air release valve for one-hand convenience
  • Precision-crafted 300mmHg Japanese-engineered manometer, housed in a zinc cage that suspends within the polymer housing for enhanced shock resistance
  • Built with metal bayonet-style connectors for rapid selection of appropriate cuff
  • Includes oversized, color-matched carrying case
  • Lifetime calibration warranty

Specifications

Sphyg Type: Multicuff
Gauge: 804N
Gauge Warranty: Lifetime
Sphyg Accuracy: +/-3mmHg @ 50ºF(10ºC) – 104ºF(40ºC)
Sphyg Accuracy:
at extended temperature range		 +/-3mmHg or 2% whichever is greater @ <50ºF(10ºC) and >104ºF(40ºC)
Storage Temp: -4ºF (-20ºC) – 131ºF(55ºC)
Valve Type: Integral
Number of tubes: 1 Tube
Cuff type: ADCUFF
Cuff size: Multiple
Cuff Range: 13-66cm
Inflation Warranty: 3 Year
Cuff color: Multiple
Zipper / Storage case: 883B
