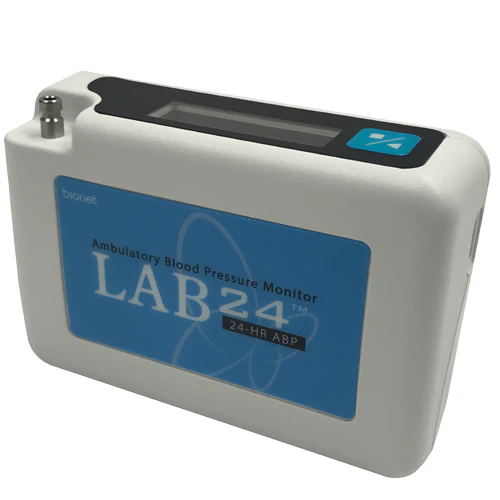

Bionet LAB24 Ambulatory Blood Pressure Monitor

Name: Bionet LAB24 Ambulatory Blood Pressure Monitor
SKU: lab24
Availability: InStock

SKU: lab24 Category: 24-Hour ABP Monitors

$995.00

Questions? Speak with a Product Specialist!

Chat with Us!

Call Us!

888.354.2968

Email Us!

Get in Touch

Description

The Bionet LAB24 is an advanced, motion-tolerant ambulatory blood pressure monitor supporting the care and diagnosis of hyper and hypotensive patients. The LAB24 provides 24 hours of blood pressure data within a 48 hours period, allowing breaks for daily activity and rest. Additionally, the LAB24’s is equipped with the most advanced BP algorithm for day/night monitoring, even under circumstances of motion artifact.

Accessories included with the Bionet LAB24 Ambulatory Blood Pressure Monitor:

(1) USB Cable
(1) ABP Monitor Belt
(1) ABP Monitor Shoulder Strap
(1) LAB24 Pouch
(1) ABPM Cuff (26 cm – 34 cm)
(1) ABPM Cuff (32 cm – 44 cm)
(1) NIBP Hose Female to Female Extension
(1) Multilingual Quick Guide and Instruction for use (USB Drive)
(1) BMS-Mini Software (USB Drive)

Additional information

ABPM Brand	Bionet

Features

Motion-tolerant algorithm for 24 hrs up to 48 hrs monitoring: The most advanced BP algorithm for day/night monitoring, even under circumstances of motion artifact
Clinically validated by standards of AAMI, ESH, BIHS, AAMI SP10, ISO 81060-2
Patented cuffs with an inner pocket for easy wearing and reassuring BP accuracy: Inner-pocket design will hold cuff position for BP monitoring, ensuring accurate, consistent readings
BMS Mini ABPM software is an intuitive, user-friendly Windows-based program that includes:
Interpretive summary report
Time-slice periods with statistical analysis
Custom report options with a single page with ABP graph
PDF report format with EMR compatibility with built-in direct email menu
Easy-to-use and one-button design
Simple operation with a one-button design
250 memory readings

Specifications

Blood Pressure Range:
- Systolic: 40-260 mmHg
- Diastolic: 25-200 mmHg
Heart Rate Range: 40-200 BPM
Maximum Inflate Pressure: 280 mmHg
Accuracy:
- Heart Rate: Accurate within ±2% or ±3 BPM, Whichever is Greater
- Blood Pressure Results Meet or Exceed ANSI/AAMI/ISO 81060-2:2013 Standards for Noninvasive Accuracy: ±5 mmHg Mean Error and 8 mmHg Standard Deviation
Validations: Clinically Validated to ANSI/AAMI/ISO 81060-2:2013, BHS (A/A), and ESH International Protocol
Operating Conditions:
- Temperature: 10°C to 50°C
- Relative Humidity: 20% to 95% RH, Non-Condensing
Classification:
- Continuous Operation
- Power: Two (2) AA Batteries, Alkaline (Not Included)
Data Memory: Flash Memory Stores up to 250 Readings
Calibration Check Recommendation: Minimally, Once Every Two Years
Safety Systems:
- Maximum Inflation Pressure Limited to 300 mmHg
- Auto Safety Release Valve for Power Failure
- Maximum Measurement Time Limited to Less than 140 Seconds
Sampling Periods:
- 24 Independently Programmable Time Periods
- Time Interval Options: None, 5, 10, 15, 20, 30, 45, 60, 90, and 120 Minutes
Overall Dimensions: 3.94″ W x 2.76″ D x 1.18″ H
Actual Product Weight: 0.51 lb (Including Batteries)

Features

Simple operation with a one-button design
250 memory readings
Motion-tolerant algorithm for 24 hrs up to 48 hrs monitoring: The most advanced BP algorithm for day/night monitoring, even under circumstances of motion artifact
Clinically validated by standards of AAMI, ESH, BIHS, AAMI SP10, ISO 81060-2
Patented cuffs with an inner pocket for easy wearing and reassuring BP accuracy
Inner-pocket design will hold cuff position for BP monitoring
BMS Mini ABPM software (Windows-based program)
Interpretive summary report
Time-slice periods with statistical analysis
Custom report options with a single page with ABP graph
PDF report format with EMR compatibility with built-in direct email menu
