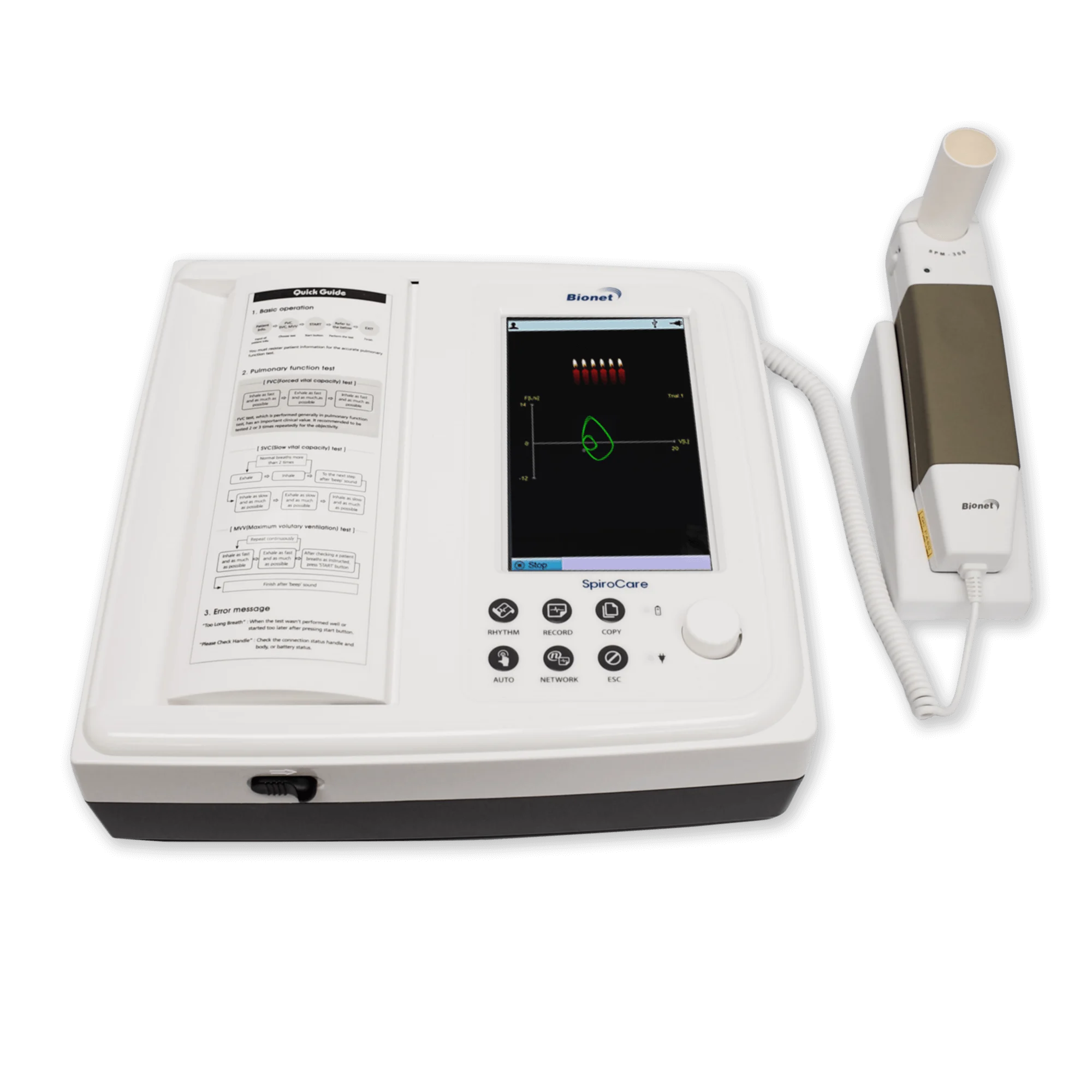

Name: Bionet SpiroCare Spirometer
SKU: SpiroCare
Availability: InStock

Questions? Speak with a Product Specialist!

Features

Performance

FVC (Forced Vital Capacity), SVC (Slow Vital Capacity), and MVV (Maximum Voluntary Maximum) test.

Pre- and post-bronchodilator comparison.

Accurate measurement by using disposable mouthpiece with built-in sensor.

PFT test report with interpretation.

User-Friendliness

7” color screen for displaying measurement in real time.

Touch interface for easily entering patient information.

Built-in printer and rechargeable battery.

USB barcode reader and keyboard can be attached through USB ports.

Disposable mouthpiece with patented sensing method is hygienic and eliminates the hassle of cleaning.

Data Management

Saves up to 200 tests internally.

Exports the saved data to USB flash drive as JPEG/PDF/DCM file format.

Specifications

Feature

Specification

Dimension

296 (W) x 305.5 (H) x 34 (D) mm, approx. 250 kg

Measuring Values

– FVC: FVC, FEV 1.0, FEV 1/FVC, FEF 0.2-1.2l, fef 25-75%, FEF 75-85%, PEF, FEF 25%, FEF 50%, FEF 75%, FIVC, FEV6, PEFT, FET100%, Extrapolated Volume
– SVC: SVC, ERV, IRV, TV, EC
– MVV: MVV, FB, TV

Presentation

Flow volume loop
MVV: MVV, FB, TV
Measurement values table

Measuring Range

Flow: 0 to ± 14 L/s
Volume: 0 to ± 12 L

Measuring Method

Differential pressure method

Prediction Equation

Morris-Polgar, ECCS-Quanjer, Knudson-ITS, Pereira, Korea CJK

Sample Rate

200 samples/sec

Flow Impedance

< 0.2 mbar s/l at 12 l/s

Measuring Accuracy

Complies with ATS (American Thoracic Society)

Environment

Ambient temperature: 15 to 40°C (59 to 104°F)
Relative humidity: 10 to 90% (non-condensing)
Atmospheric pressure: 700 to 1060 hPa
