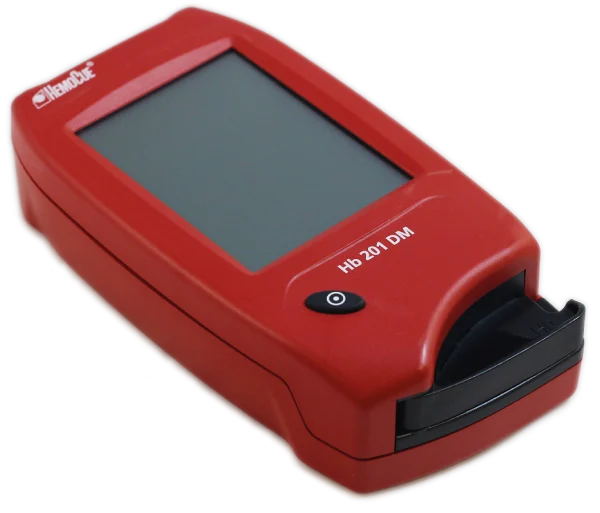

HemoCue Hb 201 DM System

HemoCue Hb 201 DM System
SKU: 121135 Category:
Price range: $1,795.00 through $2,050.00

Questions? Speak with a Product Specialist!

Chat with Us!
Call Us!
888.354.2968
Email Us!
Get in Touch

Description

The HemoCue Hb 201 DM System offers the lab accuracy and ease of use that has become a standard in Hb point-of-care testing, while also providing improved patient safety with features like QC lockout and built-in barcode scanning of patient ID.

Improve your administrative workflow and safeguard patient testing and data with our data management solution in hemoglobin point-of-care testing. Additionally, the HemoCue Hb 201 DM System offers a complete data management solution for Hb testing and anemia screening through bi-directional communication and flexible settings. Enhance your patient safety and simplify your workflow with the HemoCue Hb 201 DM System.

Additional information

Configuration

Hb 201 DM Analyzer, Hb 201 DM Analyzer with 201 DM 6 Volt AC Adapter, Plug to U.S. Adapter, Hb 201 Individually Packaged Microcuvettes, Hb 201 DM Analyzer with 201 DM 6 Volt AC Adapter, Plug to U.S. Adapter, 201 DM Primary Docking Station
Hematology Brand

HemoCue

Features

  • Data Entry — Touch-screen display and built-in barcode scanner
  • Interface Capabilities — Interface with existing network using POCT1-A (CIC standard) with our DMS software. Docking solution enables connection of up to 5 analyzers.
  • Configurable Functions — Operator ID, Patient ID, Lot ID, Site ID; Patient comments; Critical value alerts; STAT Testing
  • Results Storage — 4,000 patient/STAT tests, 500 QC tests, 500 analyzer logs, 200 patient IDs
  • DMS Software — Patient and QC reports
  • Quality Control Data Management — QC lock-out; QC scheduling; Linearity Reports

Specifications

Principle Modified azidemethemoglobin reaction; dual wavelengths (570 nm and 880 nm) for compensation of turbidity
Calibration Factory calibrated against the ICSH reference method; needs no further calibration
Testing
Sample Material Capillary, venous or arterial whole blood
Sample Volume ~10 µL
Measuring Time  within 60 seconds
Measurement Range  0–25.6 g/dL (0–256 g/L, 0–15.9 mmol/L)
Device Dimensions   6.70×3.66×1.97 in (170x93x50 mm)
Weight 0.77 lbs.  (350 g), with batteries installed
Docking Station Dimensions   8.1×5.3×2.4 in (135x93x61 mm)
Weight 1.24 lbs.  (562 g)
Temp Ranges Analyzer Storage 32-122°F (0-50°C)
Microcuvette Storage 59-86°F (15-30°C)
Analyzer Operation 64-86°F (18-30°C)
Quality Control Built-in self-test, optional liquid controls
Power
Cable AC Adapter via docking station
Batteries Internal rechargeable batteries
Interface HemoCue® Hb 201 DM Primary Docking Station+ and/or
HemoCue® Hb 201 DM Secondary Docking Station+

Features

  • Consistent – microcuvette technology features lot-to-lot reproducibility and factory calibration against the ICSH reference method
  • Easy-to-use – touch display, barcode scanner, and automatic transfer of results makes patient management and billing easier
  • Efficient – use primary and secondary docking stations to connect up to five units together via one LAN connector
  • Data Entry — Touch-screen display and built-in barcode scanner
  • Interface Capabilities — Interface with existing network using POCT1-A (CIC standard) with our DMS software. Docking solution enables connection of up to 5 analyzers.
  • Configurable Functions — Operator ID, Patient ID, Lot ID, Site ID; Patient comments; Critical value alerts; STAT Testing
  • Results Storage — 4,000 patient/STAT tests, 500 QC tests, 500 analyzer logs, 200 patient IDs
  • DMS Software — Patient and QC reports
  • Quality Control Data Management — QC lock-out; QC scheduling; Linearity Reports

Hematology Essentials

  • Touch-Screen Display
  • Built-in Barcode Scanner
  • DMS Software
  • STAT Testing
