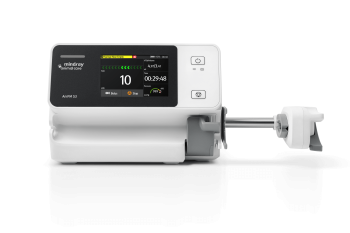

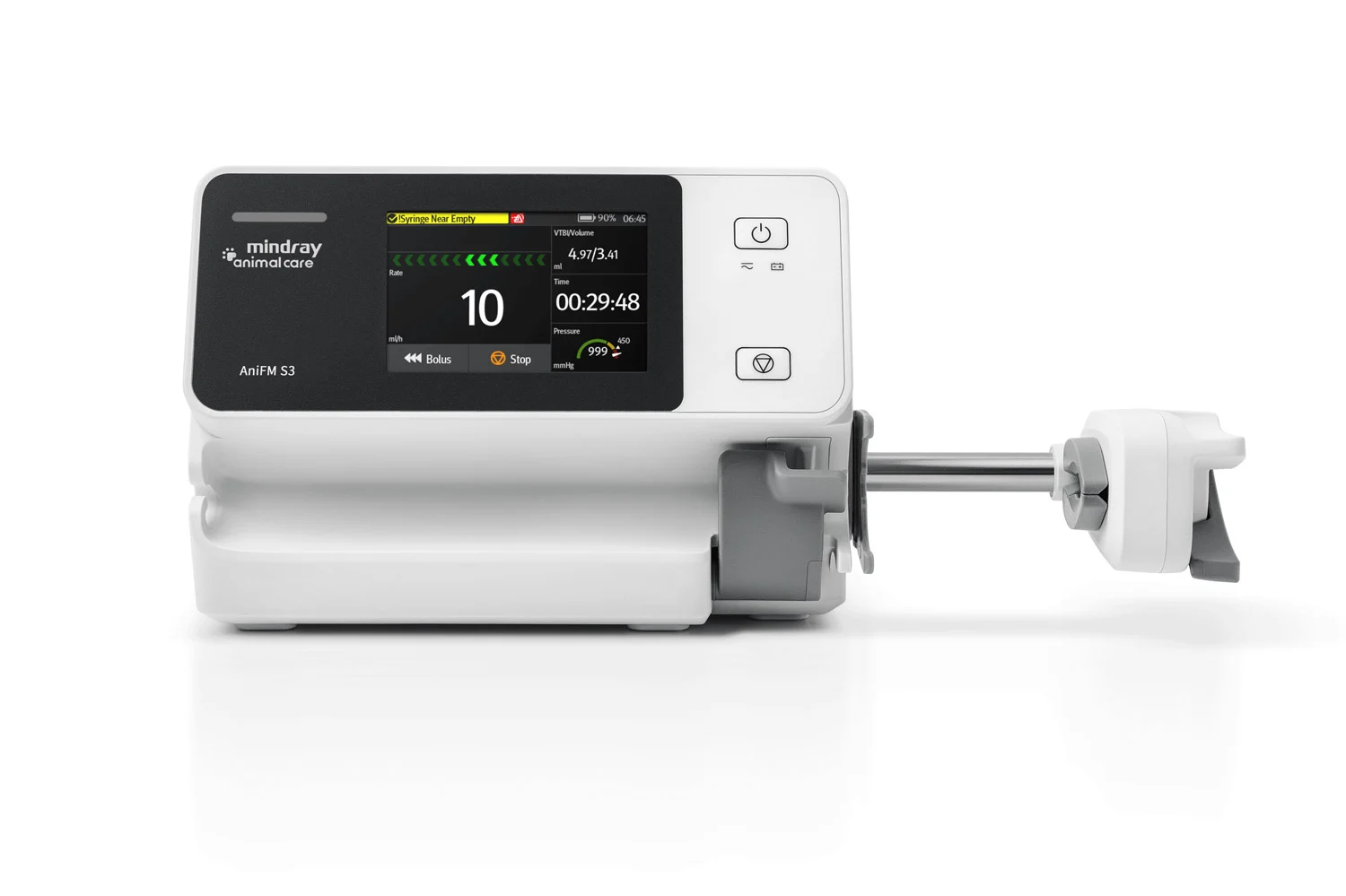

Mindray AniFM S3 Syringe Pump
$1,298.00
Questions? Speak with a Product Specialist!
The AniFM Series revolutionise the functionality and versatility of infusion/syringe pumps with smooth delivery, accuracy, and efficient infusion for animals.
Intelligent Touch Screen
The intuitive 3.5 inch touchscreen clearly shows key parameters at a glance:
- Drug name/colour/concentration
- Speed/Dose
- Time, total infusion volume, infusion volume, body weight/body surface area
Parameters shown on screen can be personalised.
The screen can be seen clearly from 3 metres away. Simply swipe up or down to access more information if required.
Change the flow rate with a few simple taps, without stopping the machine.
The robust touch screen still offers smooth control even with up to 5 layers of sterile gloves.
Dynamic Alarm
The visual alarm with graphics and text, gives a clear indication of the problem (e.g. Syringe unseated) allowing for efficient identification and resolution of any problems.
Auto-Brake
The AniFM S3 features automatic brake technology to avoid accidental bolus if the syringe is subject to external force or accidentally dropped.
Innovative Design
The rotating universal mounting system allows attachment to kennels and vertical or horizontal poles.
Multi Device Interconnection
The built-in Wi-Fi allows for connection with a Central Monitoring System (CMS).
Additionally, it enables centralised management of the animals’ infusion status from different wards including infectious disease/isolation wards, infusion rooms, in-patient departments, etc.
| Infusion/Syringe Pump Brand | Mindray |
|---|---|
| Infusion/Syringe Pump Type | Syringe Pump |
Specifications
- Weight: 1.7 kg
- Screen: 3.5″ touchscreen, TFT colour LCD
- Accuracy Rate: ≤ ±1.8%
- Flow Rate: 0.10 ml/h – 2300 ml/h (0.10 ml/h – 2000 ml/h for blood transfusions)
- Increments: 0.01 ml/h (0.10 ml/h – 99.99 ml/h), 0.1 ml/h (100 ml/h – 999.9 ml/h), 1 ml/h (1000 ml/h – 2300 ml/h)
- Preset Volume (VTBI): 0.10 ml – 9999.99 ml (increment: 0.01 ml)
- Present Time: 00:00:01 – 99:59:59
- KVO: 0.01 – 5.0 ml/h (increment: 0.01 ml)
- Purge Rate: 0.01 – 2300 ml/h
- Bolus Rate: 0.01 – 2300 ml/h (automatic or manual)
- Modes: Rate Mode, Dose Mode, Time Mode, Dose Time Mode, Sequential Mode, Intermittent Mode, Loading Dose Mode, Ramp Mode, Micro-Infusion Mode, Application supported Enternal Nutrition Feeding, Blood Transfusions
- Air Bubble Detection
- History Log (up to 5000 events)
- Drug List (up to 5000 drugs, 30 categories, and supports colour-coded drug names)
- Audio and Visual Alarms
- Battery: 6.5 hr Operating Time, 5 hr Charge Time
