Description

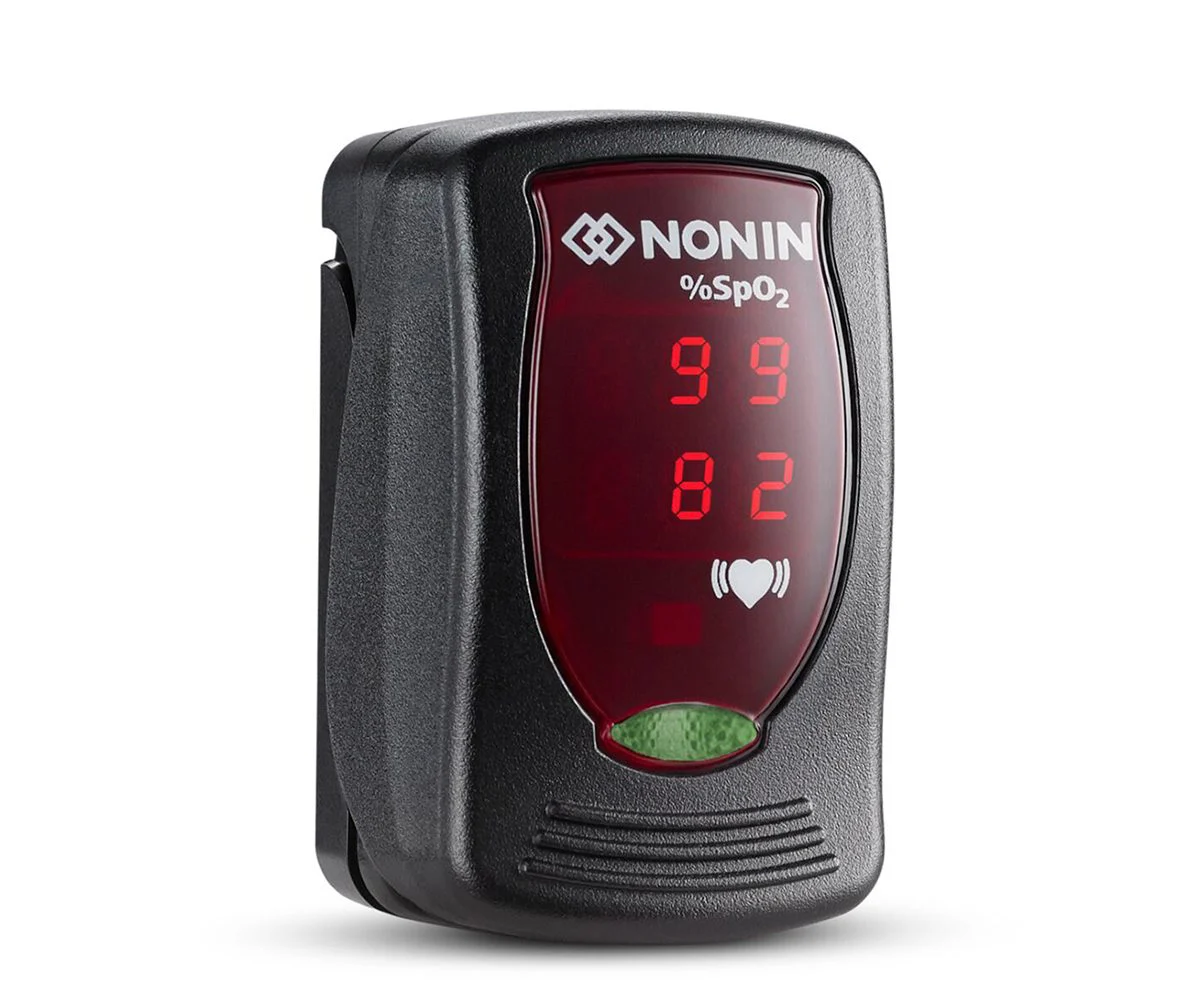

The Nonin Onyx Vantage 9590 Finger Pulse Oximeter is a small, lightweight, portable device used for measuring and displaying functional oxygen saturation of arterial hemoglobin (%SpO2) and pulse rate of patients who are well or poorly perfused. Additionally, the 9590 is intended for spot-checking of adult and pediatric patients on digits (fingers, thumb, toes) in a wide-range of environments to include hospitals, clinics, long-term care facilities, skilled nursing facilities, emergency medical services, and home healthcare services.
Specifications
SpO2 Low Perfusion Accuracy (Arms*) 70 to 100% ±2 digits
Pulse Rate Declared Accuracy Range (Arms*): 20 to 250 BPM ±3 digits
Low Perfusion Pulse Rate Declared Accuracy Range (Arms*): 40 to 240 BPM ±3 digits
Measurement Wavelengths and Output Power:
- Red: 660 nanometers @ 0.8 mW maximum average
- Infrared: 910 nanometers @ 1.2 mW maximum average
Temperature:
- Operating: 23 °F to 104 °F / -5 °C to 40 °C
- Storage/Transportation: -40 °F to 158 °F / -40 °C to 70 °C
- Time (from storage) for monitor to be ready for its intended use: 3 minutes to warm from -40 °C to -5 °C
- 5 minutes to cool from 70 °C to 40 °C
Humidity:
- Operating: 10% to 90% non-condensing
- Storage/Transportation: 10% to 95% non-condensing
Altitude:
- Operating: Up to 13,123 feet / 4,000 meters
- Hyperbaric Pressure: Up to 4 atmospheres
Battery Life:
- Operating: Approximately 6,000 spot checks or 36 hours of continuous operation
using new alkaline batteries.
- Storage: 12 months
Classifications per ANSI/AAMI ES60601-1 / CAN/CSA-C22.2 No. 60601-1:
- Degree of Protection: Type BF-Applied Part
- Enclosure Degree of Ingress Protection: IP32
- Mode of Operation: Continuous
