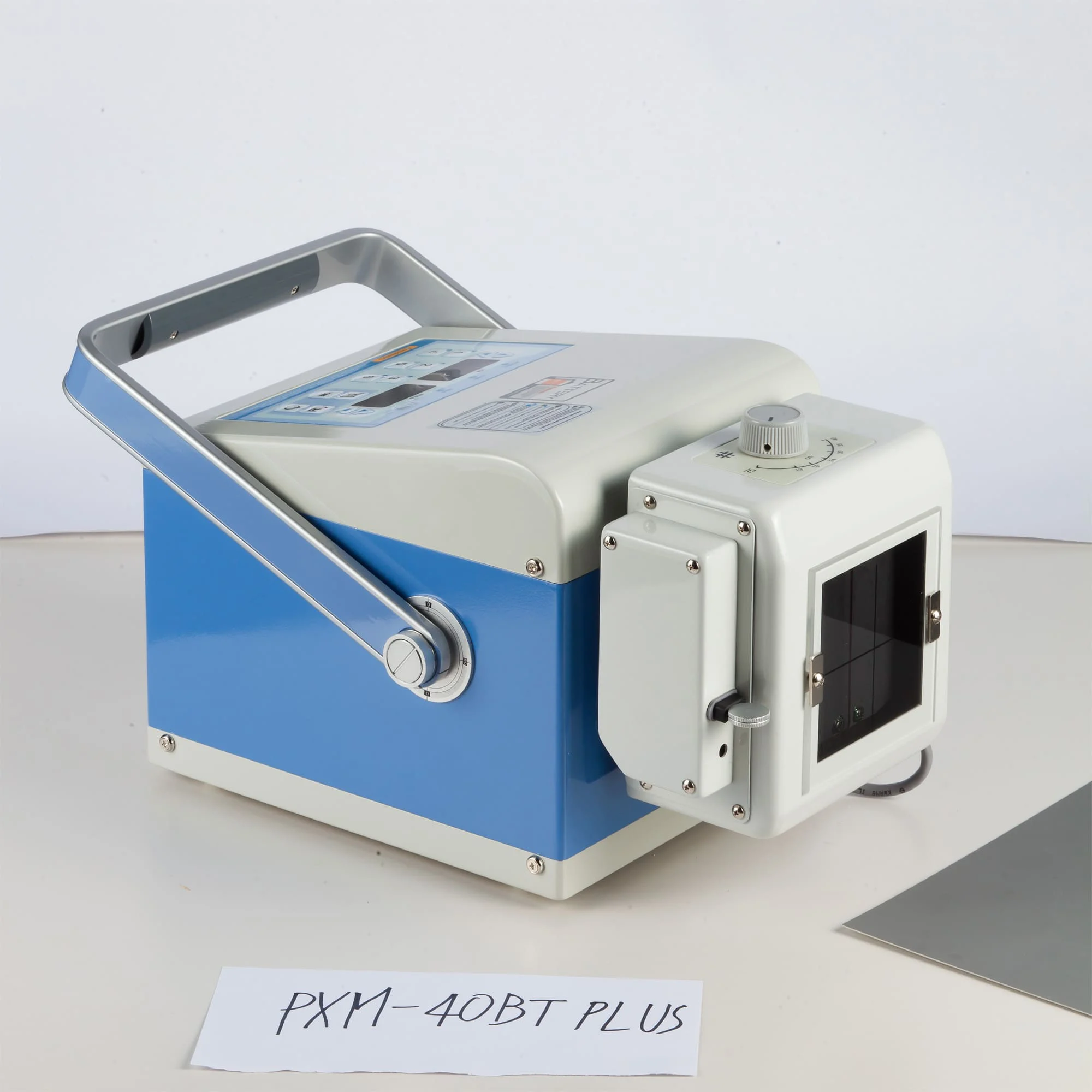

Poskom PXM-40BT+ X-Ray Generator

Poskom PXM-40BT+ X-Ray Generator
SKU: PXM-40BT PLUS Categories: ,
$16,000.00

Questions? Speak with a Product Specialist!

Chat with Us!
Call Us!
888.354.2968
Email Us!
Get in Touch

Description

The Poskom PXM-40BT is a compact and lightweight battery-powered x-ray system. Utilizing revolutionary micro technology and a powerful Lithium-ion battery, the PXM-40BT delivers power up to 3000 mAs without recharging the battery. With the digital display, you can readout battery status and mAs energy level. Additionally, the PXM-40BT is integrated with RF wireless module (optional) which is facilitated by Radio-Frequency (RF) communication device for X-ray exposure synchronization. Furthermore, 21 APR programs and dual cross laser/dual laser pointer make this x-ray system one of the most advanced on the market.

Additional information

X-Ray Brand

Poskom
X-Ray Type

Portable

Features

  • Generator type: battery powered HF generator micro-processor controller
  • inverter output (KW): 2.4KW, 30mA@80kV
  • kV Range: 40-100kV, 1kV increment
  • mA Range: 16 to 35mA, variable
  • mAs Range: .4-100 mAs, 35 selections
  • Console & Display: kV & mAs LED Display, ready & Exp. LED indicator, collimator & laser SW, preset technique SW, reversible LED readout SW
  • Controller software: PROM memory :21 APR selector, remote control program, Programmable laser beam & collimator lamp, battery charger LCD indicator, stand-by mode & dimmer
  • X-ray Tube: fixed anode type, focal size: 1.2mm, anode heat capacity: 20 KHU
  • Battery features: rechargeable lithium-ion type, capacity: 3,200 mAs, charger: 110 Watt / 110VAC, charging time: 3.5 hrs, power requirement: 58.8V / 1.5A
  • Dual laser: programmable controller, 26 auto focal point dual laser
  • Laser collimator: manual: collimator 4 blades, Programmable 10 sec. timer
  • Auto compensation: battery voltage comp. ± 10%
  • Charger power requirement: auto switch, 110/220AC, 50/60 Hz
  • Net weight: 30.9 lbs
  • Size: 14 x 9 x 8

Brochure

Features

  • Generator type: battery powered HF generator micro-processor controller
  • inverter output (KW): 2.4KW, 30mA@80kV
  • kV Range: 40-100kV, 1kV increment
  • mA Range: 16 to 35mA, variable
  • mAs Range: .4-100 mAs, 35 selections
  • Console & Display: kV & mAs LED Display, ready & Exp. LED indicator, collimator & laser SW, preset technique SW, reversible LED readout SW
  • Controller software: PROM memory :21 APR selector, remote control program, Programmable laser beam & collimator lamp, battery charger LCD indicator, stand-by mode & dimmer
  • X-ray Tube: fixed anode type, focal size: 1.2mm, anode heat capacity: 20 KHU
  • Battery features: rechargeable lithium-ion type, capacity: 3,200 mAs, charger: 110 Watt / 110VAC, charging time: 3.5 hrs, power requirement: 58.8V / 1.5A
  • Dual laser: programmable controller, 26 auto focal point dual laser
  • Laser collimator: manual: collimator 4 blades, Programmable 10 sec. timer
  • Auto compensation: battery voltage comp. ± 10%
  • Charger power requirement: auto switch, 110/220AC, 50/60 Hz
  • Net weight: 30.9 lbs
  • Size: 14 x 9 x 8

X-Ray Essentials

  • Up to 3000 mAs
  • Dual Laser Collimator
  • Optional RF Wireless Module
  • Rechargeable Battery

FAQs

What is the charging time on the PXM-40BT?
How much does the PXM-40BT weigh?
