Description

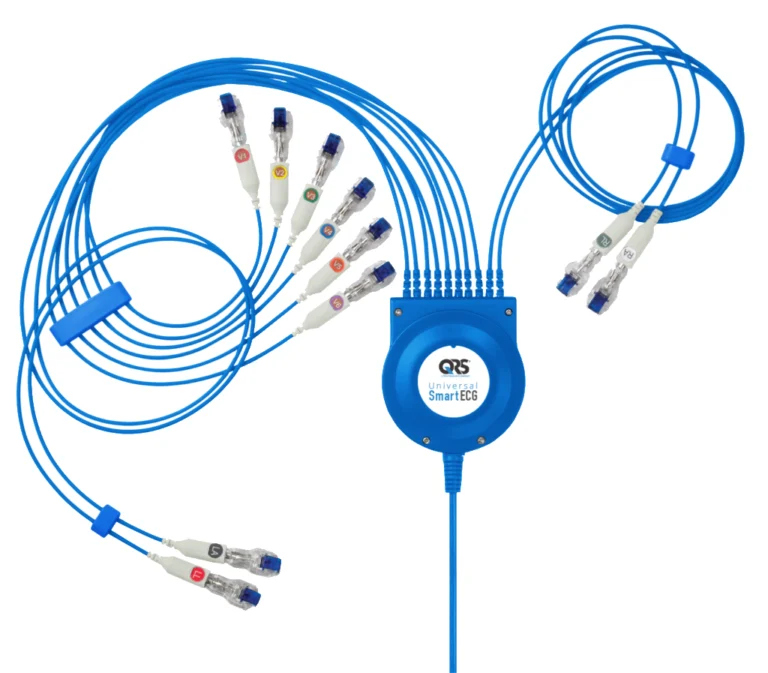

The QRS Universal ECG 12-Channel Resting ECG Machine is easy-to-use, lightweight and efficiently acquires, stores and analyzes up to 12-channels of high-resolution ECG data.
This ECG interfaces with Office Medic, which brings diagnostic testing right to the point-of-care. Office Medic software also allows the user to add comments and edit the interpretation. In conjunction with Office Medic, this EKG offers 8 report options which are transferable to PDF, JPEG or TIFF formats for easy incorporation into any EMR system.
The QRS Universal ECG 12-Channel Resting ECG Machine includes resting tab electrodes, a lead placement guide, and more.
Features
Included with each Universal ECG purchase:
- Universal 12-Channel ECG
- QRS Resting Tab Electrodes, 100
- Sure-Lock Snap & Tab Electrode Adapters, 10
- Lead Placement Guide
- Office Medic Software
- 3-year warranty, technical support, and training included
|
Control Patients
N=382
|
Ventricular Hypertrophy
N=291 |
Myocardial Infarction
N=547 |
Total Accuracy
N=1220 |
|
| Padova |
89.8 |
61.3 |
47.1 |
62.0 |
|
| Nagoya-Fukuda |
89.3 |
42.6 |
63.7 |
65.6 |
|
| IBM Medis |
91.3 |
49.4 |
62.5 |
67.6 |
|
| HP (Agilent) |
93.5 |
51.0 |
64.5 |
69.3 |
|
| Glasgow |
94.0 |
51.0 |
67.7 |
69.7 |
|
| GE (Marquette) |
86.3 |
61.1 |
69.7 |
69.8 |
|
| Means |
97.1 |
42.5 |
67.2 |
69.8 |
|
| Hannover |
86.6 |
72.1 |
79.0 |
75.8 |
|
| Louvaine |
91.5 |
67.0 |
82.1* |
77.3* |
|
8 Cardiologists
Combined Scores |
97.1 |
64.4 |
80.3 |
79.2 |
|
The numbers in the table above represent the percent correct diagnosis. For more detailed information about the Louvaine Analysis Program, please download the QRS Universal ECG Algorithm brochure.
¹Willems, J.L., et al., “The Diagnostic Performance of Computer Programs for the Interpretation of Electrocardiograms”, New England Journal of Medicine (1991); 325: 1767-1773.
