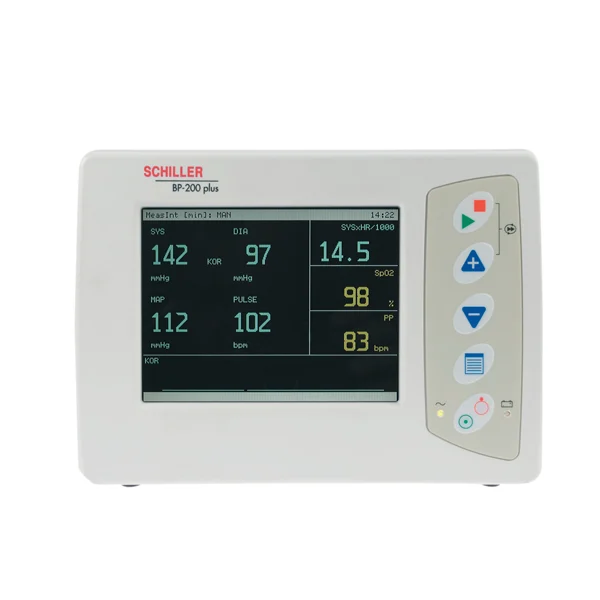

Schiller BP-200 Plus Blood Pressure Monitor


  • Options Price: $0.00
  • Product Price: $5,904.00
  • Total: $0.00
mydiscount Get a Discount

Questions? Speak with a Product Specialist!

mychat Chat with Us!
Live Chat
myphone Call Us!
myemail Email Us!
Get in Touch

Non-invasive Stress Test Blood Pressure Monitor

Accuracy and Performance for Stress Test Blood Pressure Measurement

BP-200 plus is a non-invasive stress test blood pressure monitor, designed to automatically measure and display a patient´s systolic and diastolic pressure at preset intervals, or upon demand of the operator. BP-200 plus uses two techniques of measurement. The SCHILLER K-Sound Analysis with or without QRS-trigger for measurements during stress test and oscillometric measurement in resting situations. The BP-200 plus can be used in cardiology, internal medicine, sports medicine and in rehabilitation.

Stress BP Monitor Brand


The BP-200 plus features:

  • Real time display with wave forms and measurements
  • Tabular and trend data
  • RS-232 interface for communication with SCHILLER ECG Systems (CS-200, AT-104PC, AT-110, AT-10 plus)
  • USB interface
  • BP readings initiated automatically or manually
  • Mini SD-card for simple software update
  • Headphones

The realtime display shows current monitor status and status messages and displays trends of the ongoing measurement. Additionally, you can view the last recording in tabular or trend view. The headphones enable you to audibly confirm the BP readings and signal quality during a measurement.


  • Rechargeable batteries
  • SpO2 module
  • ECG amplifier (for QRS trigger)
BP-200 plus Blood Pressure Stand-alone Monitor with accessories; Does not include QRS Trigger cable. Sold separately. (BP-200 PLUS STRESS BLOOD PRESSURE MEASUREMENT DEVICE)
