SKU: ECO-1

Chison ECO 1 Portable Ultrasound System

$3,975.00

Includes 1 Probe of Your Choice (Linear or Convex)

mydiscount Get a Discount

Questions? Speak with a Product Specialist!

mychat Chat with Us!
Live Chat
myphone Call Us!
888.354.2968
myemail Email Us!
Get in Touch

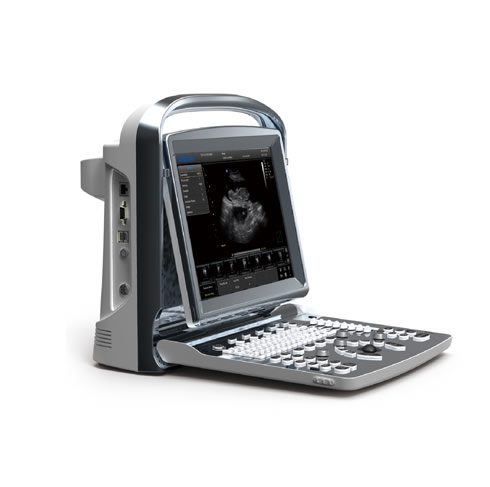

The Chison ECO 1  Portable Ultrasound System features a 12" high resolution LED monitor and is one of the very few non-color systems that offers Pulsed Wave Doppler.  The ECO 1 features 1 probe connector and a built-in li-ion battery with 2 hours of battery life. This B&W Ultrasound Machine also offers an intuitive user interface and sophisticated software that simplifies the exam process, while the patient management and transfer capabilities are simple to use.

Ultrasound Brand

Ultrasound Color Options

Ultrasound Condition

Features

Features:

  • 12″ rotable LED monitor
  • B Mode
  • B/M
  • One-key quick save
  • Mutli Beamforming Technology



Dimensions:

  • 13″ x 13″ x 6″ – 14Lbs



Options:

  • Two Probe Connectors
  • Built-in Battery
  • DICOM 3.0
  • Anti-water Keyboard cover
  • Carrying Bag BG-100
  • Support PC Printer HP P2055D
  • Trolley TR-9000



Application:

  • Abdominal
  • Ob/Gyn
  • Urology
  • Vascular
  • Pediatric
  • Small Parts
  • Cardiology



Outputs:

  • 3 USB Ports
  • VGA Port
  • Video Port
  • LAN Port



Transducers:

  • MC5V-A 5.0 MHZ Micro-Convex
  • V6-A 60 MHz Transvaginal
  • L7S-A 5.3-11.0 MHz Linear
  • C3-A 3.5 MHz Convex
  • MC6-A 6.0 MHz Micro-Convex
  • MC3-A 3.0 MHz Micro-Convex
  • L7M-A 5.3-10.0 MHz Linear
Reviews
Features
  • 12-inch rotatable LED monitor (0 – 30 deg) adapt to different viewing angles
  • Ultra light and compact design, ideal for mobile services
  • Applications: Urology, Vascular, Small Parts, Pediatrics, Cardiology
  • Display Modes: B, B/B, 4B, M, B/M
  • Gray Scale 256 Levels
  • Multiple Beam forming Technology (Enhance Frame Rate, Improve Image Resolution)
  • 240mm Max Scanning Depth (depending on the probe type)
  • 2.5MHz – 11MHz Probe Frequency (depending on the probe type)
  • Archives Management – Patient information management, Patient images record, Patient exam report
  • Power Supply – AC 240V-100V, 50Hz-60Hz
  • A broad range of transducers available
  • Software packages, General measurement, OB, Obstetrics, GYN, Urology, Abdomen, Cardiac B/M mode, Vascular, Small parts, Orthopedic, Pediatrics
Brochure
Ultrasound Machine Essentials

12” LED, Rotatable LED

Multiple Beam Forming Technology

1 Transducer Port

3 USB ports

Ultrasound Machine Essentials

The Chison ECO 1 features the following display modes: B, B/B, 4B, M, B/M.

The Chison ECO 1 Portable Ultrasound System is best suited for the following applications:

  • Abdominal
  • OB/GYN
  • Urology
  • Pediatric
  • Small Organ (breasts, testes, thyroid)
  • Cardiac
  • Peripheral Vascular
  • Musculoskeletal Conventional & Superficial
