Features

• Portable and ergonomic design: With a small size and weight of only 215g, the Nano L12 EXP easily fits in any pocket.
• Extended autonomy and fast charging: The Li-ion battery provides up to 5 hours of use (50% scan/50% pause) and charges in just 2.5 hours.
• IP67 resistance: The device is water and dust resistant, making it easy to use in harsh environments.
• Multiple imaging modes: Includes B-mode, C-mode, M-mode and Pulsed Doppler (PW), ensuring precise visualizations for various clinical applications.
• Versatile connection: Android compatibility and connectivity options via USB Type-C cable or wireless (standard).
• Automatic optimization functions: Includes functions such as Auto Trace, Auto B-Line and one-touch optimization for B/C/PW modes.

Brochure

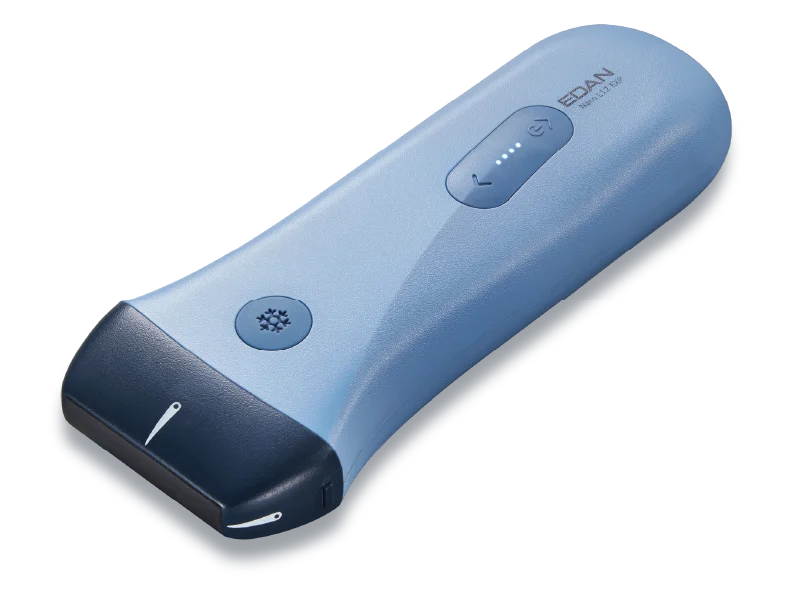

Edan Nano L12 EXP Diagnostic Ultrasound System

Specifications

• Dimensions: 161 mm x 64 mm x 29 mm
• Weight: 215 ± 5 g
• Physical channels: 64
• Number of crystals: 192
• Range Frequency: 4–12 MHz
• Maximum scanning depth: 0-10 cm
• Autonomy: Up to 5 hours of operation
• Charging time: Approximately 2.5 hours from 8% to 90%
• Protection: IP67 (dust and water resistant)
• Compatibility: min. Android 10
