Features

• 2.4-inch LCD touch screen
• Lightweight and easy to carry
• Noninvasive bladder volume measurement
• Easy and expert Mode
• Rapid scanning and measurements
• Printable patient information and bladder volume values
• Built-in TF storage card
• Voice annotation function available
• Multiple language selection
• Integrated fully sealed probe
• Large data storage: more than 10,000 cases can be stored
• Long battery life
• Patient information management software for reviewing, editing and printing

Brochure

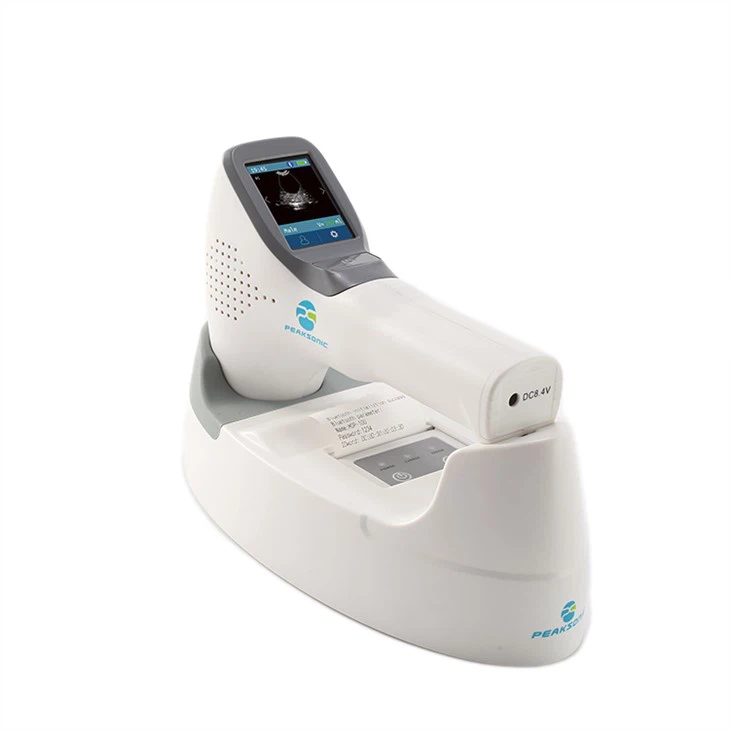

Peaksonic M1 Bladder Scanner Brochure

Specifications

• Probe: 2D mechanical sector-scanning
• Nominal ultrasonic operating frequency: 2.5MHz±15%
• Volume measurement range: 0ml-999ml
• Volume measurement accuracy: Error ±14%, ±14ml
• Volume display resolution: 1ml
• Capacity of battery: 2600mAh
• Operation mode: Touch key
• Tissue harmonic imaging
• Information storage: Images, results and other information of the patient can be stored
• Information printing: Print the measurement results and pictures through Bluetooth control
• WIFI wireless transmission: upload patient information to the computer (Only available with M1-W)
• USB interface: Connect with the computer through this interface; plenty of user information can be stored
• System setting: Includes operation mode, connect with PC, voice, interface language, automatic shutdown, time, date, upgrade, calibration, version number, reminder, password management
• Voice recording function
• Multi-language selection
• There are two operation modes: Expert mode, Easy mode
• Size of display screen: 2.4 inch TFT-LCD
• Power: 13VA(M1 Power: 10VA)
• Size: Host size: 208*169*62mm±0.6mm; Boundary dimension with the base: 260*173*120mm±0.6mm• Instrument weight: About 500g ±50g (including battery)
• Power supply mode: Battery powered: DC7.4V±0.5V mode: Battery
• Continuous scanning time of battery powered instrument: > 3 hours and 20 minutes• Continuous electrification time of battery powered instrument: > 5 hours
• The waterproofing grade of the front end of the probe is IPX7
• The instrument is an integrated device consisting of the host and the probe
