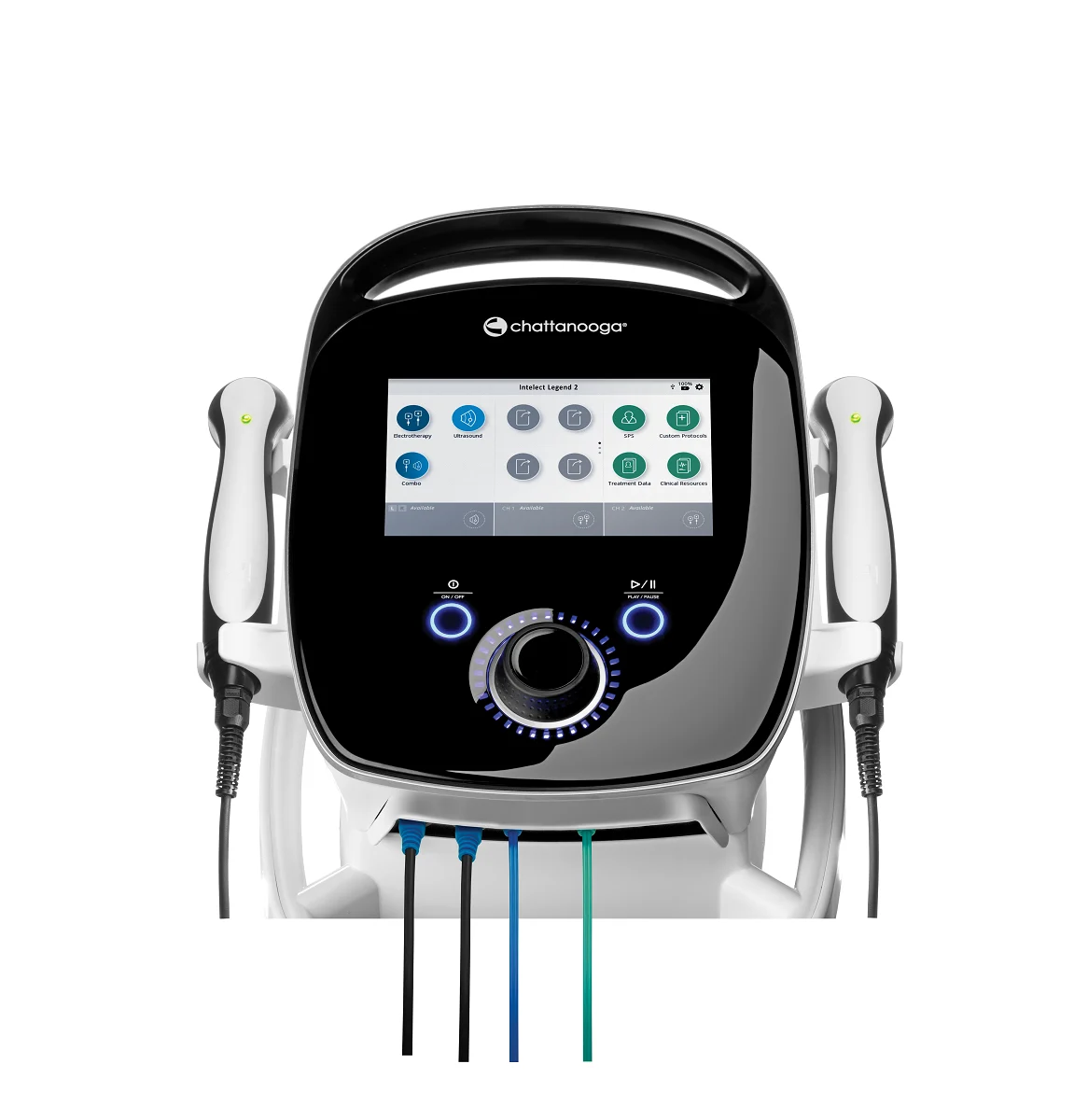

Intelect Legend 2 2/4 Channel Combo
$4,656.86 – $5,448.22
Questions? Speak with a Product Specialist!
The Intelect® Legend 2 is the next generation in physical medicine modalities. Its clever design and intuitive features make Intelect® Legend 2 the choice for today’s modern practice.
Intelect® Legend 2 is a two-channel or four-channel combo electrotherapy system used with or without an optional cart.
Each unit features Chattanooga’s proprietary VMS waveform which enables stronger, more efficient muscle contractions while the suggested protocols reduce treatment setup time to help improve clinic workflow.
Standard Accessories
- Nylatex Wrap, 2.5" x 24"
- Vectra Neo Stim Ch 1/2 Leadwire Kit
- Power Cord
- 6x8 cm Carbon Electrodes (QTY 4)
- Legend 2 5cm² Ultrasound Applicator
- Dura-Stick+ 5cm Square Electrodes (Quantity 4)
- USB Drive
| Physical Therapy Brand | |
|---|---|
| Physical Therapy Equipment Type | |
| Configuration | 2 Channel Combo, 4 Channel Combo |
Features
- 2&Go Treatments
Save up to 12 preset or custom protocols directly on the home screen to begin treatments within 2 button pushes. - VMS Waveform
Chattanooga’s proprietary VMS waveform achieves stronger muscle contractions and less neural fatigue while still providing a more comfortable experience for the patient. - SPS Menu
Therapists are able to set up a treatment within 3 button pushes by selecting an indication rather than having to select every waveform and parameter. - Magnetic Cart
Optional cart with magnetic attachment removes the need for any tools during installation making it simple to move the device throughout the clinic. - Improved battery life
Removes the need for excess cables and provides all day use in portable applications. - 12 Electrotherapy Waveforms
VMS, VMS Burst, Interferential, Premodulated, Asymmetric Biphasic, Symmetric Biphasic, High Volt, Microcurrent, Russian, HAN, Direct Current, VMS FR - Sleek Industrial Design
Impressive aesthetics combined with a familiar app-like software experience makes the device more intuitive and enjoyable for therapists and patients. - Dual frequency ultrasound
1MHz or 3.3 MHz capability with 1cm2, 2cm2, 5cm2 and 10cm2 applicator options. - Wide range of accessories available
Specifications
| Mains Power | 100-240 VAC, 50/60 Hz, 1.0 A |
| Weight | 6.8 lbs (3.1 kg) |
| Shipping Weight | 10.8 lbs (4.9 kg) |
| Dimensions | 14″L x 13.4″W x 5.9″H (35.5 cm x 34 cm x 15 cm) |
| Electrical Safety Class | Class 1, Electrotherapy Type B, Ultrasound Type B |
| Safety Tests | IEC 60601-1, ISO 10993-1, IEC 60601-2-5, IEC 60601-1-2, IEC 60601-2-10, IEC 60601-1-6, IEC 62366-1, IEC 62304, IEC 62133, ISO 14971 |
