Oakworks Echocardiography EA Table

Oakworks Echocardiography EA Table
SKU: 84773 Categories: , , ,
Price range: $6,550.00 through $10,400.00

Disclaimer: Freight items are exempt from our standard free shipping policy. If you choose to purchase freight items online, our team will review your order and contact you with a personalized shipping quote before capturing any funds.

Questions? Speak with a Product Specialist!

Chat with Us!
Call Us!
888.354.2968
Email Us!
Get in Touch

Description

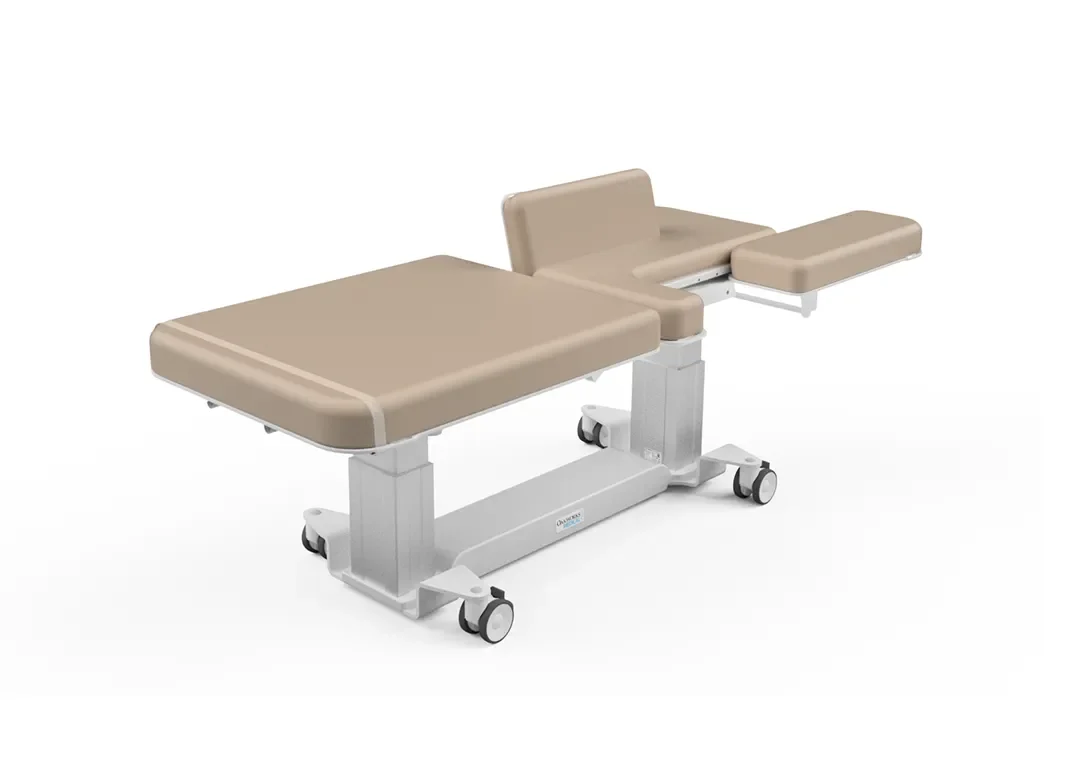

The OakWorks Echocardiography EA (Ergonomic Advantage Line)  is a fully electric Ultrasound table. This table incorporates many ergonomic improvements including all motions being powered, shortening exam times, and making positioning patients easier. The EA Ultrasound table features 10″W x 22″L access panels , padded surfaces, twin lifting towards and easy to use interface. From powered cardio panels to multiple motions occurring at the same time, this ultrasound table is sure to live up to its name.

Recommended for Cardiac Exams, Vascular Exams, Abdominal & Superficial Structures Exams, Musculoskeletal Exams, Biopsies and more!

Additional information

Ultrasound Accessories Type

Table Brand

Oakworks
Configuration

Base, + Central Base Lock, + Stirrups, + Stirrups, Central Base Lock, + Stirrups, Side Rails, + Stirrups, Side Rails, Central Base Lock, + Side Rails, Central Base Lock, Foot Control, + Foot Control, + Side Rails, Foot Control, + Stirrups, Side Rails, Central Base Lock, Foot Control, + Side Rails, Battery Backup, Central Base Lock, + Stirrups, Side Rails, Battery Backup, Central Base Lock, Foot Control, Procedure Tray, + Central Base Lock, Foot Control, + Battery Backup, Central Base Lock, Foot Control, + Side Rails, Battery Backup, Central Base Lock, Foot Control, + Battery Backup, + Side Rails, + Side Rails, Central Base Lock

Features

  • 2 Section Top – 30 in. (76 cm) wide x 72 in. (183 cm) long
  • Backrest – 34 in. (86 cm) long
  • Seat – 38 in. (97cm) long
  • Motion 1 – Electric Height Range 19 in. – 33 in. (48-83cm)
  • Motion 2 – Electric Trendelenburg/Reverse Tilt ±18°
  • Motion 3 – Electric Fowler Backrest 0-75°
  • Motion 4 – Electric Sliding Cardio Panel opens 15 in. (38cm)
  • Motion 5 – Access/Back support: Electric 10” wide (25cm) x 22” long (56cm) 0-75° Access/Back support for patient positioning (right side)
  • Controls – Multi-function hand control with presets controlling multiple movements
  • Weight Capacity – 550lb (250kg)
  • Product Weight – 359lb (163kg)
  • Removable Padding System – 3 in. (8cm) Comfort Foam ™
  • Included Features – 4 in. (10cm) locking casters, Electric access back support, Electric sliding cardio panel, Paper roll holder
  • Warranty – 3 years parts, 2 years labor
  • Safety Listings – FDA listed, CE marked, cETLus listed, CB Certificate
  • Fabric – Premium, PVC free TerraTouch™ Medical Grade Fabric is ISO 10993 Certified

Brochure

Oakworks Echocardiography EA Table Brochure

Features

  • Electric cardio panel allows you to adjust the opening to the size you need and opens as wide as 15” (38cm). Great for left or right handed scanning.
  • Large, electric access panel offers more support for side lying patients and minimizes twisting and reach for sonographers.
  • 19” – 33” (48-83cm) height range supports ergonomic working heights for both echocardiograms & stress echo
  • Designed by leading Ergonomic Specialists and exceeds the “Industry Standards for Sonography”
  • Sleek base design promotes unobstructed compatibility with ultrasound equipment ensuring better ergonomic conditions for the sonographer

Brochure

Oakworks Echocardiography EA Table Brochure

Ultrasound Table Essentials

  • Powered Cardio Panel
  • Powered Access Panel
  • Graphic Interface w/ Hand Control
  • Replaceable Pads

FAQs

How much weight can the Echocardiography EA Ultrasound Table support?
Are all the padded surfaces on the EA Ultrasound Table replaceable?
