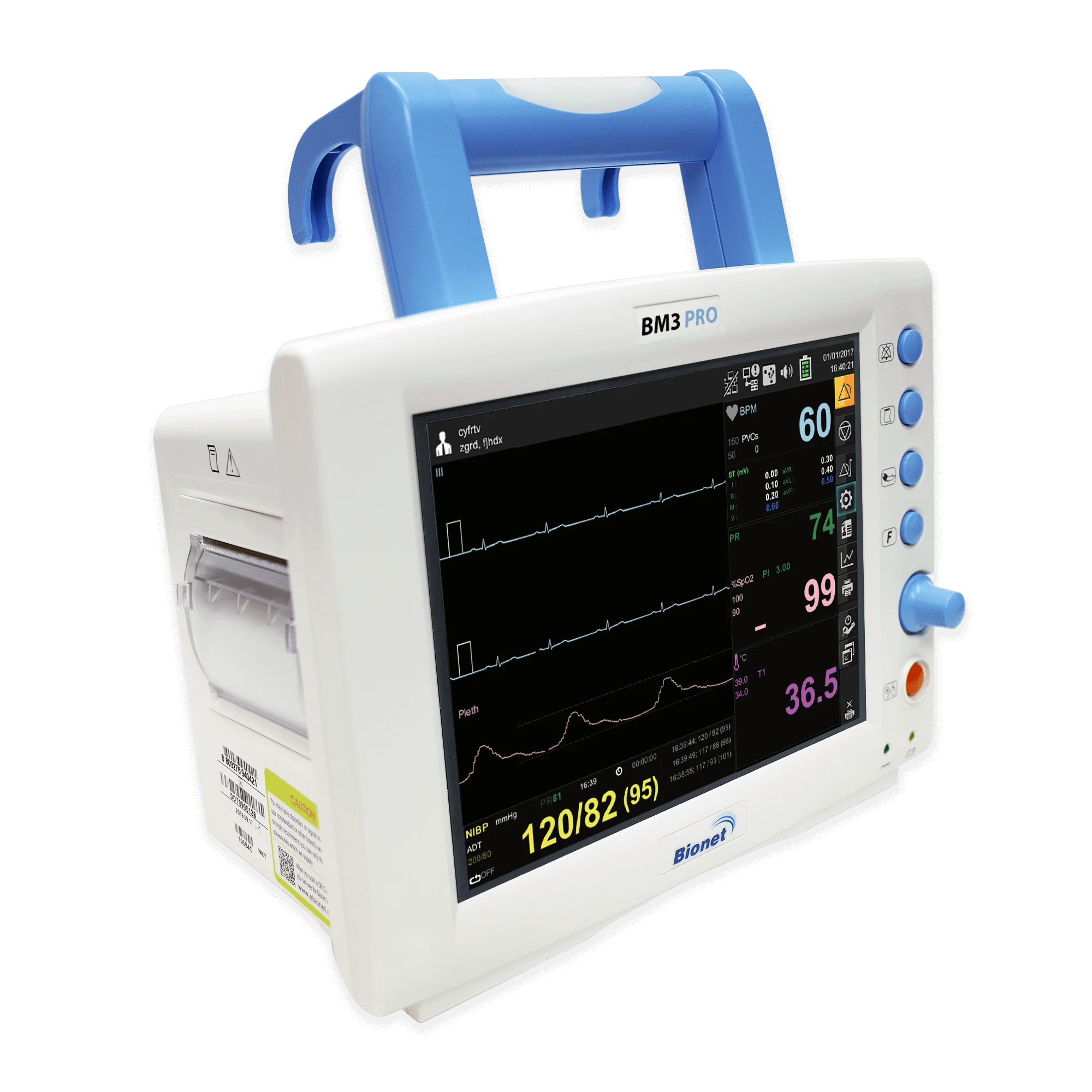

Name: Bionet BM3 Pro Multi-Parameter Patient Monitor
SKU: BM3Pro
Availability: InStock

Questions? Speak with a Product Specialist!

Features

Superior Advantages

ECG, SpO2, NIBP, respiration, temperature*, EtCO2*

8.0″ Color TFT Touch Screen with 4 Wave Forms

Individual Sweep Speed Setting for Each Parameter

SpO2 Measurement – Every Low Perfusion Detection / Pulse Beep

Multiple Display Modes

Screen Freeze On/Off

168 Full Hours of Trend Data Are Stored

USB Memory Storage

External HDMI Output for Large Screen

Enhanced & Extendible Multi-Parameter

Sidestream/Mainstream EtCO2

High-Performance ECG Detection and Analysis

Enhanced input impedance for dry skin or electrode patch

Pacemaker detection function

Enhanced Data Management

Graphical and tabular trends

20 cases – 10 sec. alarm waveform stored, reviewed and printed

USB memory storage

Transportable

Li-ion rechargeable battery allows cordless use up to 2 hours

Less than 7 lbs, including battery

Specifications

Item

Feature

Specification

General

Display, Resolution

8′ wide color touch TFT LCD, 800 x 600 pixels

Dimension, Weight

238 (W) x 250 (H) x 163 (D) mm, approx. 3.1 kg

Trace

4 waveforms: 2*ECG, SpO2, respiration
Swap speed: 6.25, 12.5, 25, 50 mm/sec.

Indicators

Categorized alarms (3 priority levels)
Visual alarm
QRS beep & SpO2 pulse beep
Percent (%) SpO2 pitch tone
Battery Status, external power LED
Rotary Knob

Interfaces

Power supply: AC 100 – 240 V (50/60 Hz)
DC input connector: 18 VDC, 2.8 A
LAN digital output for transferring data
Nurse call system connection:
– 0.3 A at 125 VAC
– 1 A at 24 VDC
External HDMI output for large screen
USB barcode reader
USB memory data storage/Software upgrade

Battery

Rechargeable Li-ion battery
Approx 2 hours of continuous operation

Thermal Printer (Option)

Speed: 25, 50 mm/sec.
Paper Width: 58 mm

Data Storage

168 hours of trend data, 20 cases of 10 sec. alarm waveform

Language

English, French, Spanish, Italian, German, Chinese, Russian, Czech, Polish, Turkish, Romanian, Portuguese, Bulgarian, Hungarian, Korean, Japanese, Greek

Standard Accessories

3-lead ECG cable with extension – 1 ea
Electrodes – 10 ea
NIBP extension hose (3 m) – 1 ea
NIBP adult cuff (23-33/27.5-36.5 cm) – 1 ea
SpO2 extension cable (2 m) – 1 ea
Reusable adult SpO2 probe – 1 ea
DC adapter (18VDC, 2.8A) with power code – 1 ea
Paper roll – 2 ea

Optional Accessories

5-lead ECG cable
Temperature probe (skin)
NIBP cuff (reusable/disposable)

Optional Module

Mainstream EtCO2 airway adapter kit (sensor)
Sidestream EtCO2 airway adapter kit (sensor)

ECG

Lead Type

3-lead, 5-lead (Option)

Lead Selection

3-lead: I, II, III
5-lead (Option): I, II, III, aVR, aVL, aVF, V

ECG Waveforms

3-lead: 1 channel
5-lead (Option): 1 channel

Heart Rate Range

Adult: 30 to 300 bpm
Neonate/Pediatric: 30 to 350 bpm

Heart Rate Accuracy

+/-1 bpm or +/- 1%, whichever is greater

Sweep Speed

6.25, 12.5, 25, 50 mm/sec.

Filter

– Diagnoses: 0.05 tp 150 Hz
– Monitoring: 0.5 to 40 Hz
– Moderate: 0.5 to 25 Hz
– Maximum: 5 to 25 Hz

Pacemaker Detection Mode

Indicator on waveform display (user selectable)

Protection

Against electrosurgical interference and defibrillation

Respiration

Method

Thoracic impedance

Channel Selection

RA-LA or RA-LL

Measurement Range

5 to 120 breaths per minute

Accuracy

+/- 1 breath per minute

SpO2

Saturation Range

0 to 100 %

Saturation Accuracy

70 to 100 % +/- 2 digits, 0 to 69 % unspecified

Pulse Rate Range

30 to 254 bpm

Pulse Rate Accuracy

+/- 2 bpm

NIBP (Suntech)

Method

Oscillometery

Operation Mode

Manual / Automatic / Continuous

Pressure Range

0 to 300 mmHg (accuracy +/- 3 mmHg)

Safety Pressure

Adult pressure: 20 to 260 mmHg
Pulse rate: 30 to 220 BPM
Pediatric pressure: 20 to 160 mmHg
Pulse rate: 30 to 220 BPM
Neonate pressure: 20 to 130 mmHg
Pulse rate: 30 to 220 BPM

Accuracy

Meets accuracy requirements of ANSI / AAMI SP10: 1992 AND 2002

Temperature (only probe option)

Measurement Range

0 to 50°C (32 to 12250°F)

Accuracy

25°C to 50°C: +/- 0.1°C
0°C to 24°C: +/- 0.2°C

Compatibility

YSI series 400 temperature probes

Sidestream EtCO2 – Respironics (option)

Measurement Range

0 to 150 mmHg, 0 to 19%

Accuracy

0 to 40 mmHg +/- 2 mmHg, 41 to 70 mmHg +/- 5 % of reading, 71 to 100 mmHg +/- 8 % of reading, 101 to 150 mmHg +/- 10 % of reading

Respiration Rate

2 to 150 breaths per minute

Respiration Accuracy

+/- 1 breath per minute

Mainstream EtCO2 – Respironics (option)

Measurement Range

0 to 150 mmHg, 0 to 19%

Accuracy

0 to 40 mmHg +/- 2 mmHg, 41 to 70 mmHg +/- 5 % of reading, 71 to 100 mmHg +/- 8 % of reading, 101 to 150 mmHg +/- 10 % of reading

Respiration Rate

0 to 150 breaths per minute

Respiration Accuracy

+/- 1 breath per minute

Reviews

Features

ECG, SpO2, NIBP, respiration, temperature*, EtCO2*
8.0″ Color TFT Touch Screen with 4 Wave Forms
Individual Sweep Speed Setting for Each Parameter
SpO2 Measurement – Every Low Perfusion Detection / Pulse Beep
Multiple Display Modes
Screen Freeze On/Off
168 Full Hours of Trend Data Are Stored
USB Memory Storage
External HDMI Output for Large Screen
Sidestream/Mainstream EtCO2
Enhanced input impedance for dry skin or electrode patch
Pacemaker detection function
Graphical and tabular trends
20 cases – 10 sec. alarm waveform stored, reviewed and printed
USB memory storage
Li-ion rechargeable battery allows cordless use up to 2 hours
Less than 7 lbs, including battery

Patient Monitor Essentials

8.0″ Color TFT Touch Screen with 4 Wave Forms

168 Full Hours of Trend Data Are Stored

Sidestream/Mainstream EtCO2

Pacemaker Detection Function

Commonly Asked Questions

What is included with my purchase of the Bionet BM3 Pro Patient Monitor?

Every purchase of the Bionet BM3 Pro Patient Monitor includes:

BM3 Pro Main Unit
3 Lead ECG Cable (snap type) with Extension Cable
Electrodes
SpO2 Adult Finger Sensor and Extension Cable
NIBP Adult Cuff (arm circumference 25-35 cm) and Extension Tube
Chart Paper (x2)
Power Adaptor & Hospital Grade Power Cord
Operation Manual
3-Year Warranty Card

What is the intended use of the Bionet BM3 Pro Patient Monitor?

The Bionet BM3 Pro’s primary use is to monitor vital signs in patients, including: ECG, SpO2, NIBP, respiration, temperature and EtCO2.
