Features

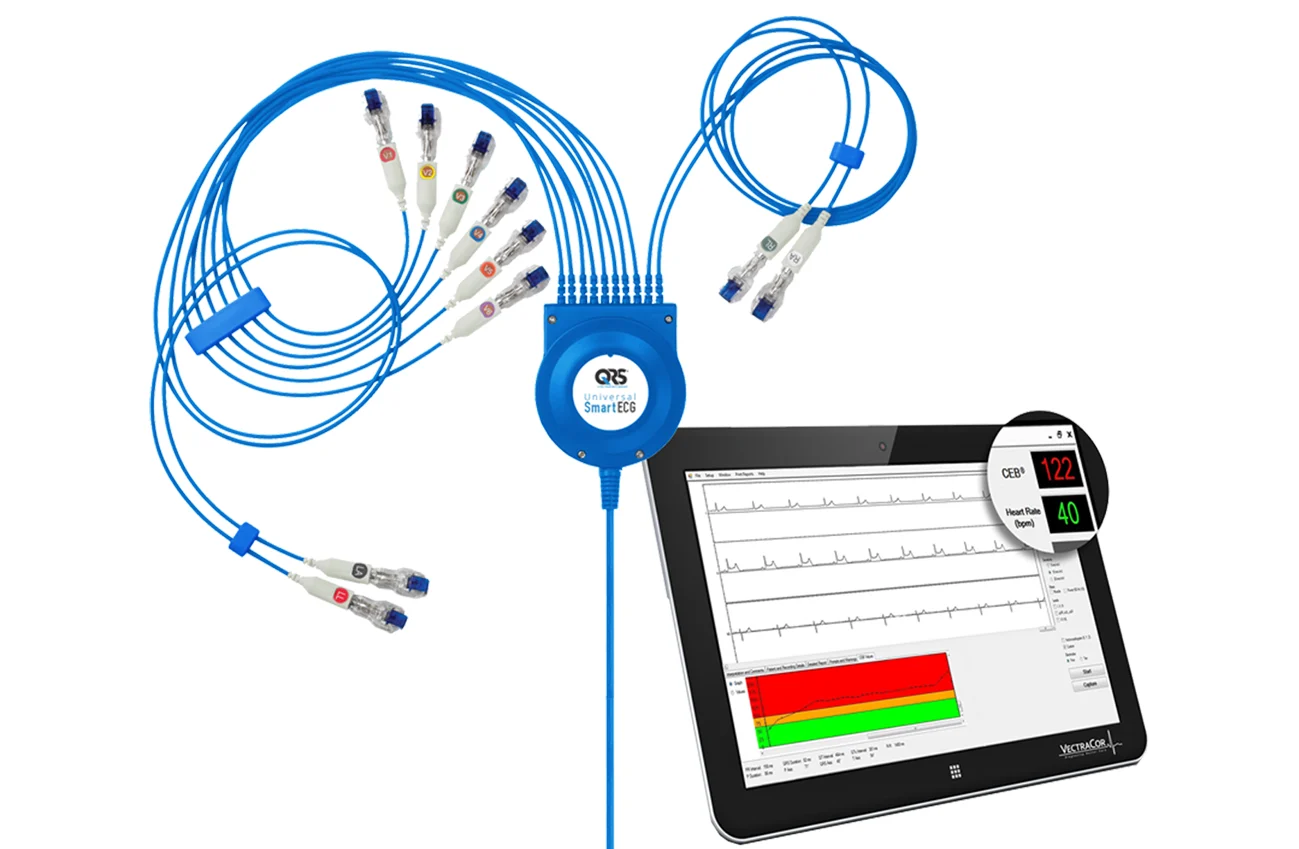

VectraplexECG

• VectraplexECG (VECG) provides the Cardiac Electrical Biomarker, CEB®, a technology to detect ECG changes suggestive of acute ischemic injury, including AMI
• Providing a powerful diagnostic test right in your ECG machine
• VectraplexECG can derive a 12 to 15-lead ECG report with just 5 electrodes.
• Vector-based

The Cardiac Electrical Biomarker

The CEB^® is our smartest ECG technology! It can detect ECG changes suggestive of a heart attack. Simply, it is a color coded index number that measures the degree of di-polarity of the cardiac electrical field. The cardiac electrical field of a healthy patient is primarily di-polar, while occurrence of myocardial injury leads to the appearance of a multi polar cardiac electrical field. A CEB^® greater than 94 indicates an abnormal condition and further clinical assessment is necessary.

All VectraplexECG devices can

• 15-lead ECG = 12-lead ECG, Vectorcardiogram/XYZ leads and vector loops.*
• 22-lead ECG = 12-lead ECG, right heart,  posterior, Vectorcardiogram/XYZ leads and vector loops.*
• Use 5-electrodes to derive a 15-lead ECG (US) and 22-lead ECG (EU). Option to use 10-electrodes for a 12-lead ECG.
• Derive a Cardiac Electrical Biomarker, CEB®, that will detect ECG changes suggestive of an AMI
• One push email capability
• EMR Connectivity

*Note: 15-lead ECG is for U.S. and 22-lead ECG is for CE marking countries, Australia and Taiwan

Brochure

VectraCor VectraplexECG System Brochure
